Machinery and processes of the industrial arts, and apparatus of the exact sciences (1869)
Barnard, Frederick A. P. (Frederick Augustus Porter), 1809-1889 · Washington, Govt. print. off. · leaf 219

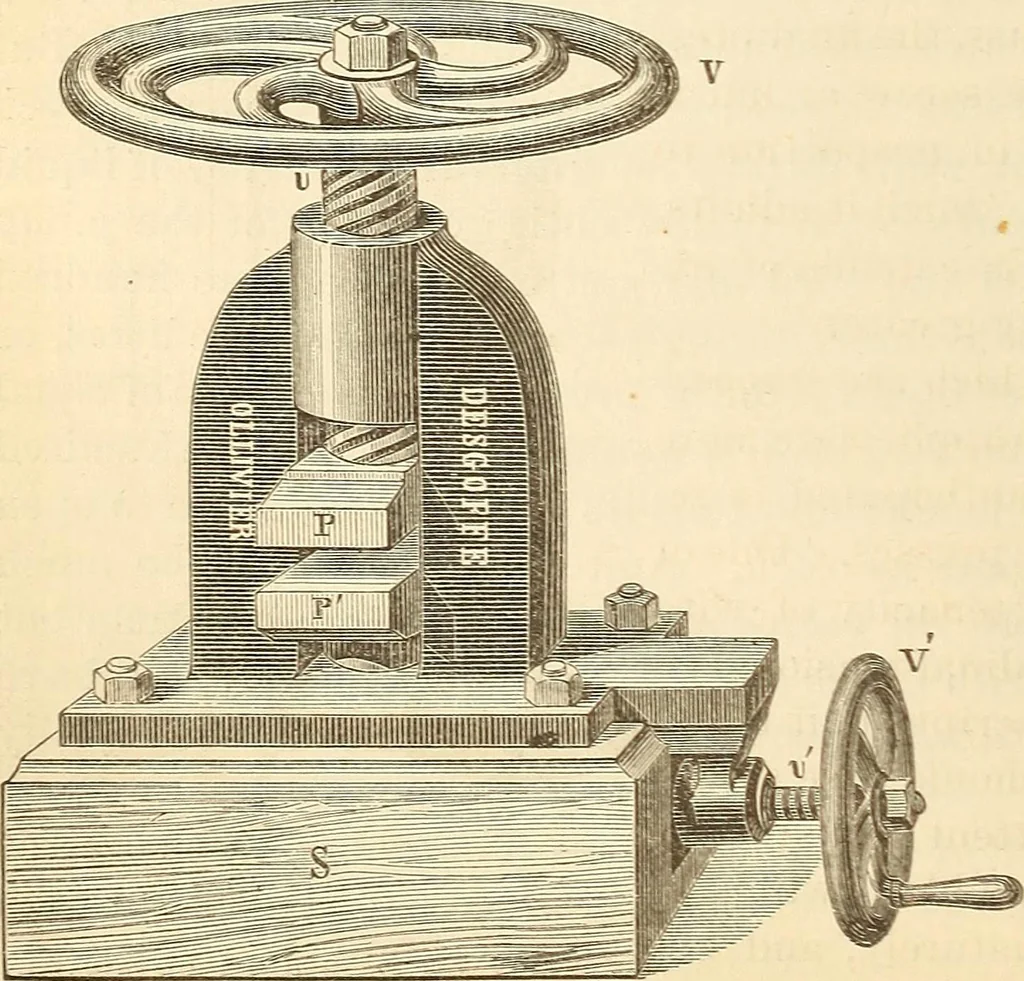

rting is very apparent. Messrs. Desgoffe andOllivier have construct-ed a variety of formsof apparatus embodyingthe principle above ex-plained. In the smallerforms of press, a solidrod is used instead of acord, for the displace-ment of the liquid. Fig.9. PI. V. represents whatis styled by them a… … DESGOFFE & OLLIVIER S STERHYDRAULIC APPARATUS. 203 its lower portion, and surrounded by a jacket K. The object ofjacket is to arrest the jets of liquid expelled from the perforations, theand direct them to an annular channel at thebase, where they flow off through a lip atone side. The large…
Machinery · Scientific apparatus and instruments
