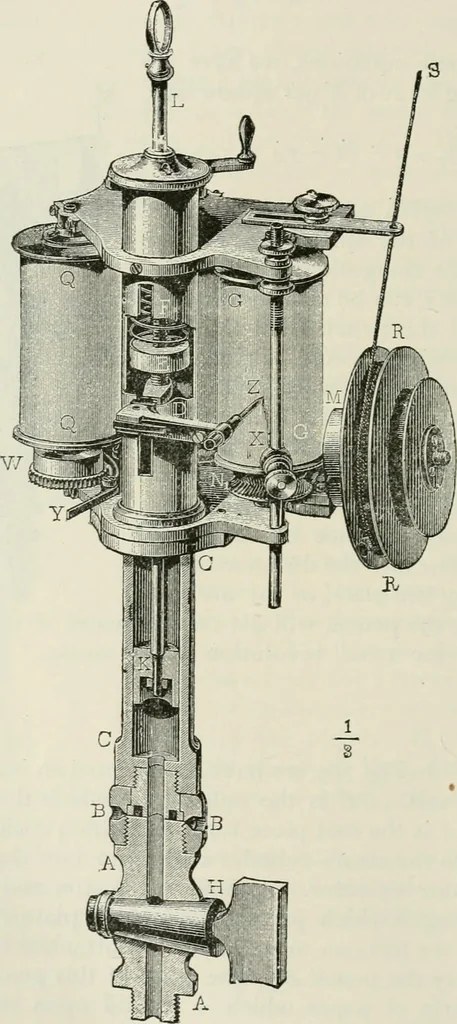

hscrews into the steam-cylinder cover and into the end C oithe indicator cvlinder. Around the piston rod KL is aspiral spring i^ which presses against the plate ^. Belowthis plate, we have an arm D and link attached to the rod,which carry the pencil Z. The point of this pencil pressesupon a strip… … § 492.] THE STEAM ENGINE. 403 whose vertical ordinates are proportional to the pressureof the steam. The motion of the cyhnder and paper is Fu;. 790.
