A manual of elementary geometrical drawing, involving three dimensions. Designed for use in high schools, academies, engineering schools, etc.: and for the self-instruction of inventors, artisans, etc. ... In five divisions .. (1868)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley & son · leaf 128

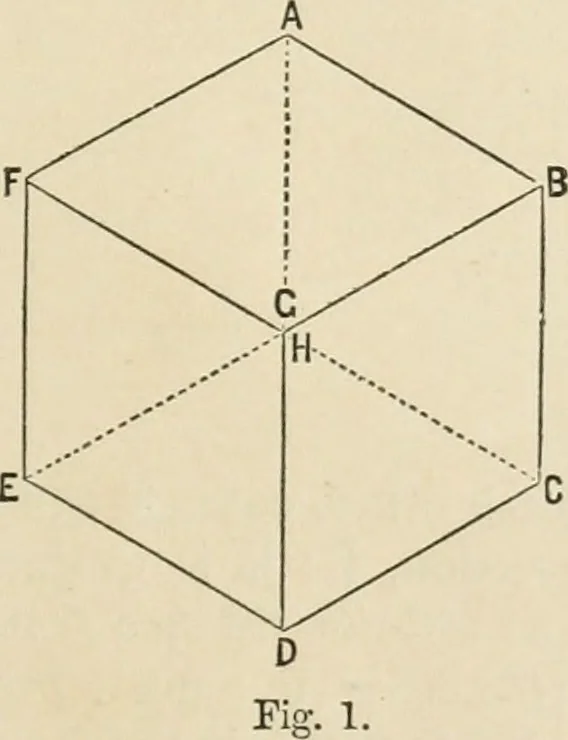

n) is. It has been variouslynamed, Military, Cavaliei, or Mechanical Perspective.We propose to call it Cabinet Projection, it being especiallyapplicable to objects no larger than those of cabinet work, andbeing actually used in representing such work. 2. This new projection differs from… … / s X HJ C D Fisr. 2. a cabinet projection of the same cube ; all the edges being of thesame length in both iiguies. Hence we see, as stated, that in thelatter figure, the faces DEFG, and ABCH, and by consequenceevery line in them, are shown in their true form^ as well as size ;which is not true of…
