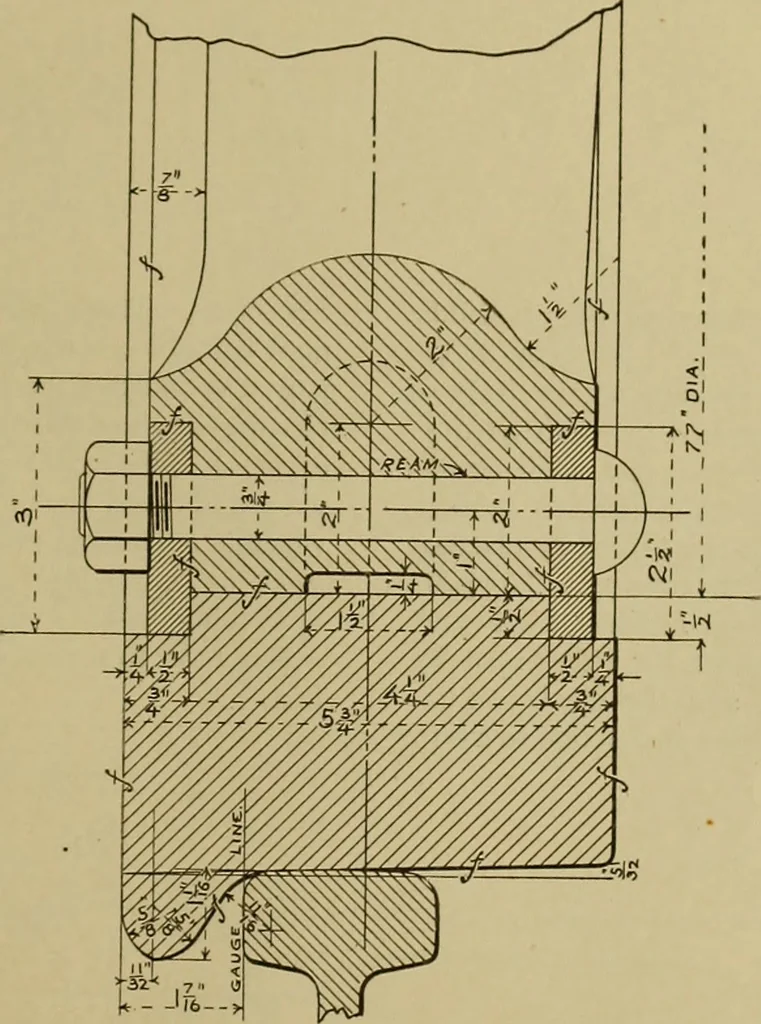

LOCOMOTIVE DRIVING WHEEL. PLATE 51 … SECTION OF RIM AND TIRE LOCOMOTIVE DRIVING WHEEL. I40 A MANUAL OF MECHANICAL DRAWING. Plate 52.—A locomotive connecting rod. It will benoted that the ends only are shown, the body of therod being broken away. Enough of the body isshown to indicate that it is tapered in width from 5at the large end…
