Marine engine indicating; a complete treatise on the indicator and indicator diagrams as applied to marine engines (1910)
Linch, Charles Sutterley, b. 1869 · Boston, American Steam Gauge and Valve Mfg. Co. · leaf 11

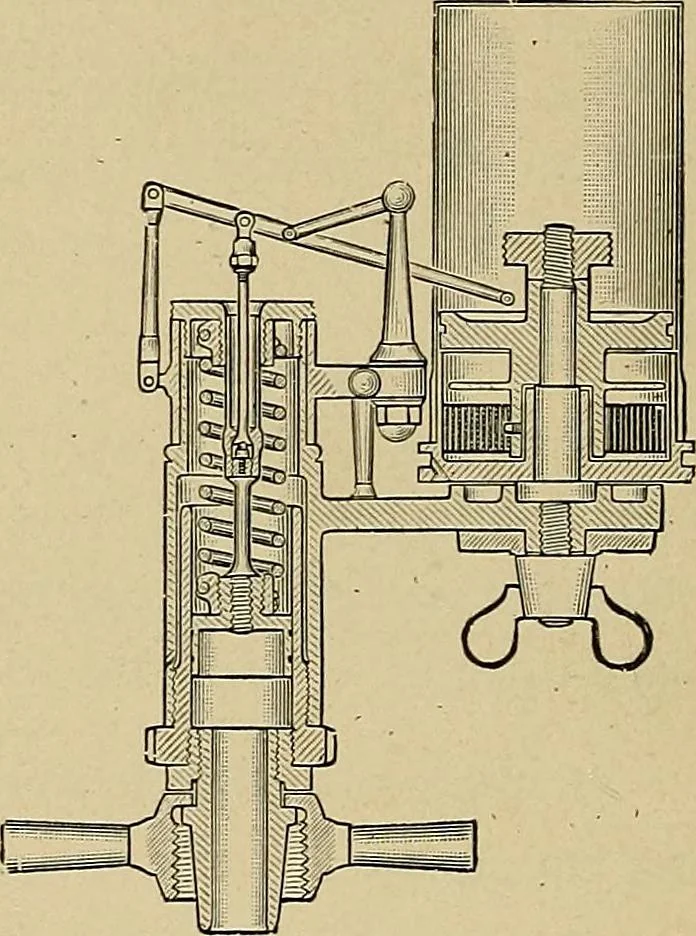

Fig. 1 Fig. 2 Fig. 1 shows an outside view and Fig. 2 a section through theincased spring instrument manufactured by the American SteamGauge and Valve Manufacturing Company of Boston, Mass., knownto the engineering profession as the American Thompson ImprovedIndicator. This instrument consists of…
Indicators for steam-engines · Marine engines
