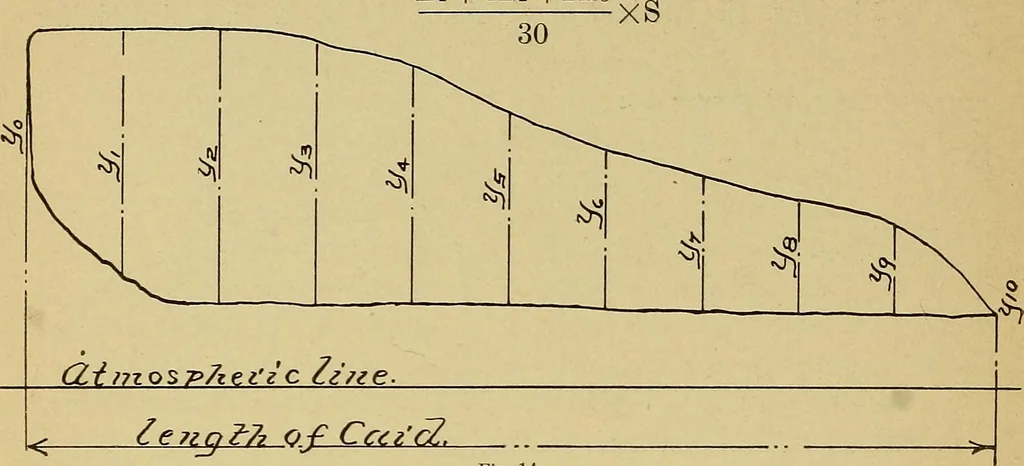

. = 10j9.68750[ = 0.96875 Scale of Spring = 60 lbs. per inch. Mean Effective Pressure = 0. 96875 X 60 = 58. 125 lbs. Mean Effective Pressure by Planimeter = 58.37 lbs. Simpsons Rule Another method is by what is known as Simpsons Rule, and is asfollows: Divide the diagram into ten equal parts as… … le?f.jZ-77 of Cct?:<?.. Fig. 14 Simpsons first rule is: To the sum of the first and last ordinate,add four times the even ordinates, plus twice the odd ordinates andmultiply the sum by one-third the common interval gives area of figure.Now our interval is one-tenth, and one-third multiplied by…
