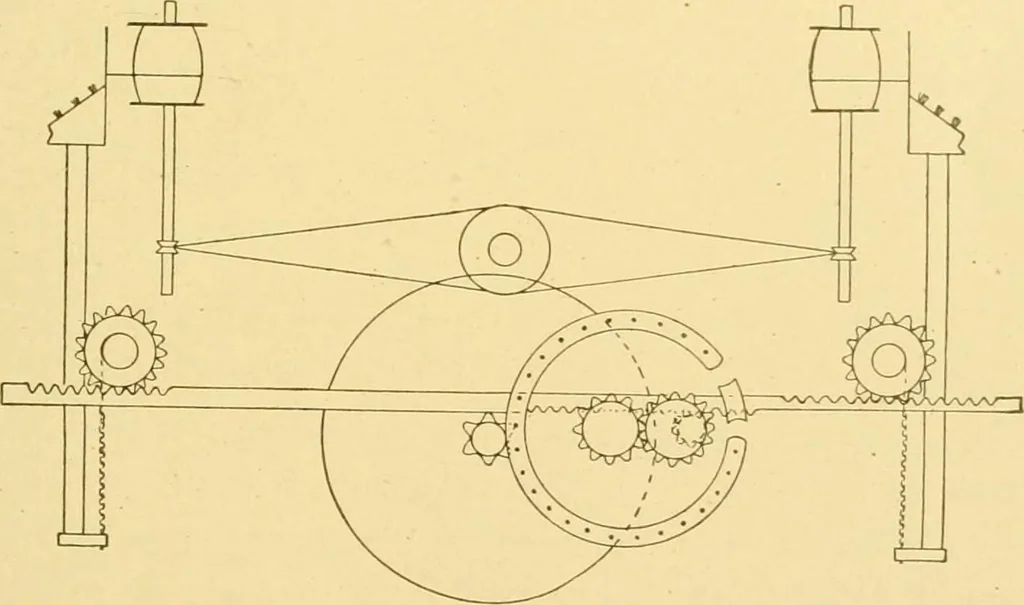

END VIEW OF SPOOLER. machine to the other. At different pLaces on tliis shaft are smallpulleys, to which are connected the chains that lift the builderrail. The mangle gear has a reciprocal motion, owing to the … Fig. 4.small pinion rotating on the inside as well as the outside of thegear. The mangle also has two different diameters, which causea fast and slow motion to the builder rail, the largest diameterbeing at the center of the gear; this is the direct cause of theconvex-shaped spool. ;f AVARP…
