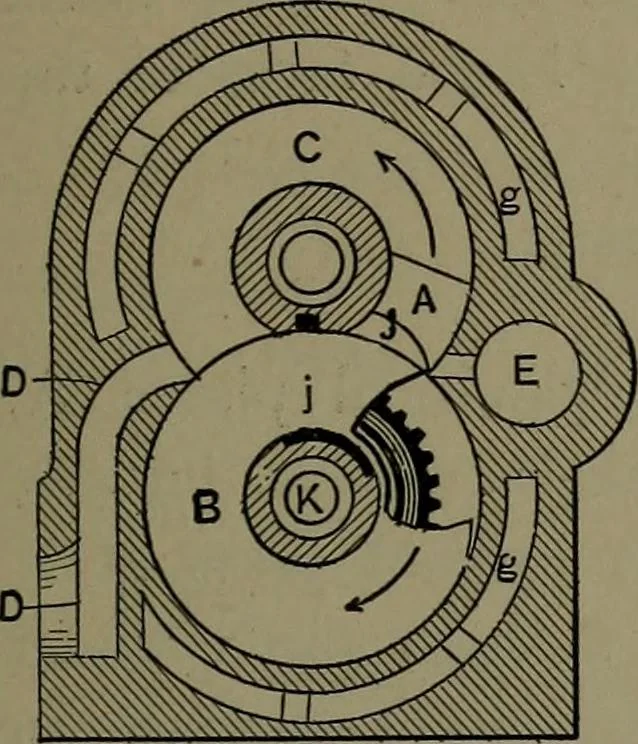

sition at the instant oftaking steam through a port from the valvechamber E. The piston disks and gear areattached to the driving shaft, and the abut-ment disks and gear are attached to theshaft K. These shafts run in taper phos-phor-bronze bearings, which are adjustable forwear or other causes by… … 251. ROTARY STEAM ENGINE. French design. The engineconsists especially of a jacketed cylinder, C, in the interior of which rolls a piston ring, G>rlimrm. r^vJivilUi carrying at its upper part a partition, H,always connectedwith a special oscil-lating piece, r, r, andcontributing…
