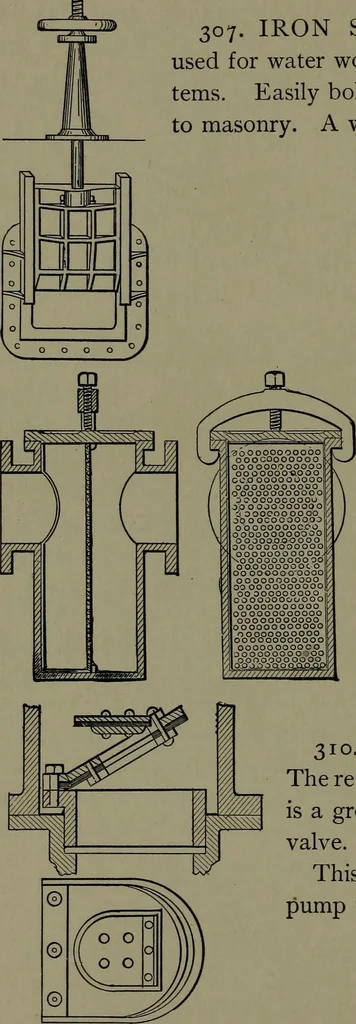

306. FLEXIBLE BALL JOINT, which canbe packed with any kind of packing held in placeby rings and springs. This design prevents sand or grit getting intothe joint bearings and causing leaks. Tubbs patent- I30 HYDRAULIC TOWER AND APPLIANCES. 307. IRON SLUICE GATE. Type of designsused for water works,… … 308. BASKET STRAINER.A perforated plate slid into a cylin-drical chamber with cover and yokein a line of suction pipe. Easilyremoved for cleaning. 309. Section showing perfora-tions in the strainer plate. 310. DOUBLE-BEAT FLAP VALVE. The reversed flap on the back of the main flapis a great relief…
