Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 406

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 406

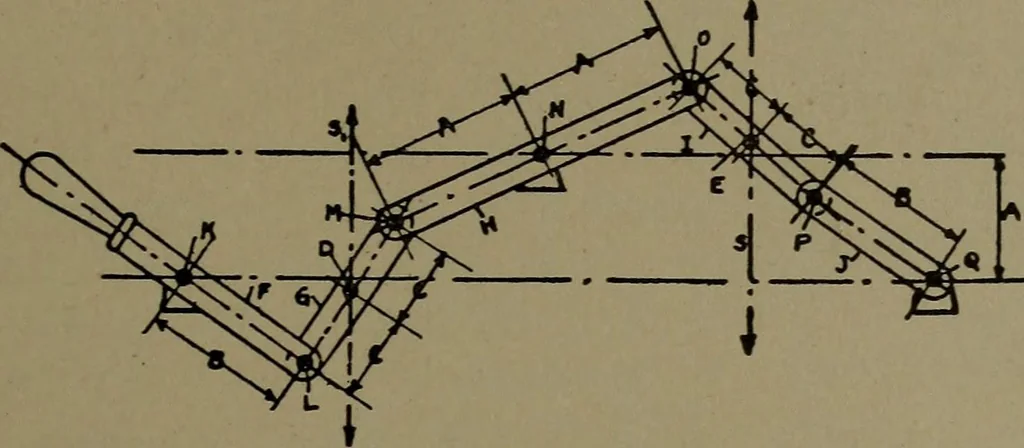

—Levers F, H, and / are con-nected by links G and /. Lever F is pivoted at K and connectedto link G at L. Lever / is pivoted at Q and connected to link / at P. LeverH is pivotedat N and con-nected on oneend to lever /at O and onthe other endto link G at M. Point D, on link G, connected on one end… … 1657. STRAIGHT p !-l T LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers H and / are connected bya link K. Lever H is pivoted at Dand connected at E to link K.Lever / is pivoted at G and con-nected to link K at F. The point P, when B is twice A and C is half oi A, will move in a straight line of 28…
