Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices"; (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing company · leaf 239

An illustration from Mechanical applicances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical mvements, powers and devices";, 1917, leaf 239

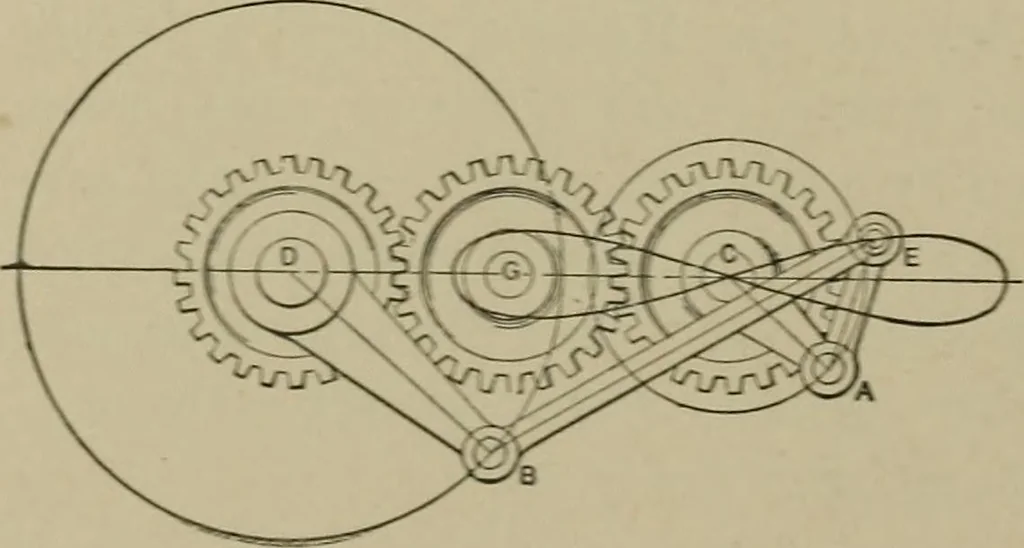

6c6. ELLIPTIC LINKAGE from circular gears. Three equalgears D, G, C, with the linkages A. E. B. There are many variationsof this form of gear and link-age in regard to the forms ofcurves which may be produced.Arm B. D. is twice the lengthof arm A. C. Link A. E.is equal to A. C. … GEARING AND GEAR MOTION, ETC. 235

Mechanical movements
