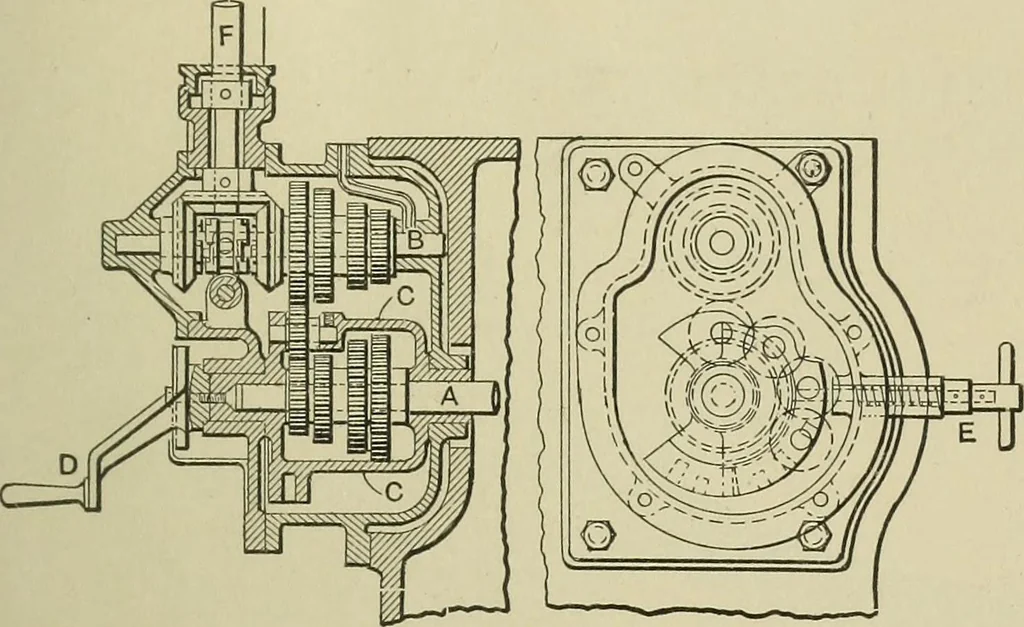

GEARING AND GEAR MOTION, ETC. 241 … 628. VARIABLE SPEED GEAR. On driving shaft A are securedfour spur gears. Shaft B above also has four gears fast upon it. A frame or box C, whichis mounted in such away that it may beturned by handle D,carries four interme-diate gears whichmesh with the driv-ing gear on shaft A.As frame C is…
