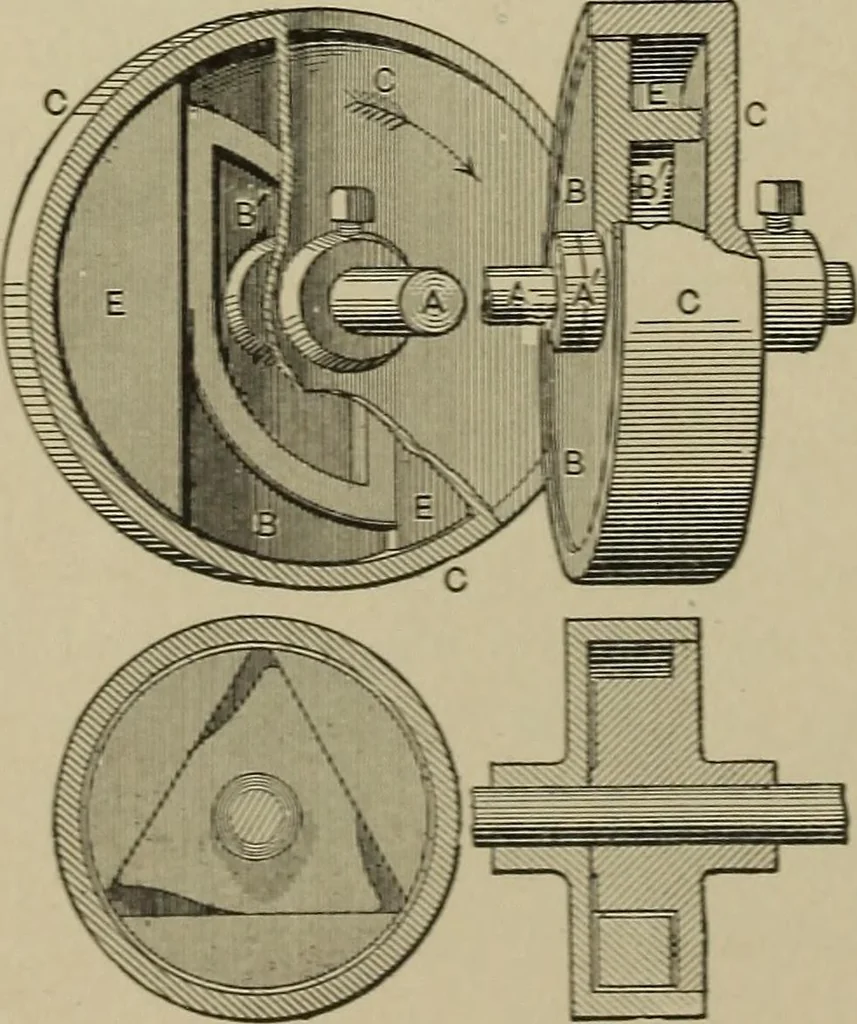

24- A section showing the details of construction. … 25. PANEL CLUTCHES.Simpson type. A silent clutchthat prevents back movementand takes up a forward motionwithout the jerk of a ratchet andpawl. Lseful on agricultural im-plements, sewing-machines, etc. 26. The under figure repre-sents a triangular quick-actionpanel applied on the same prin-ciple as…
