Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 321

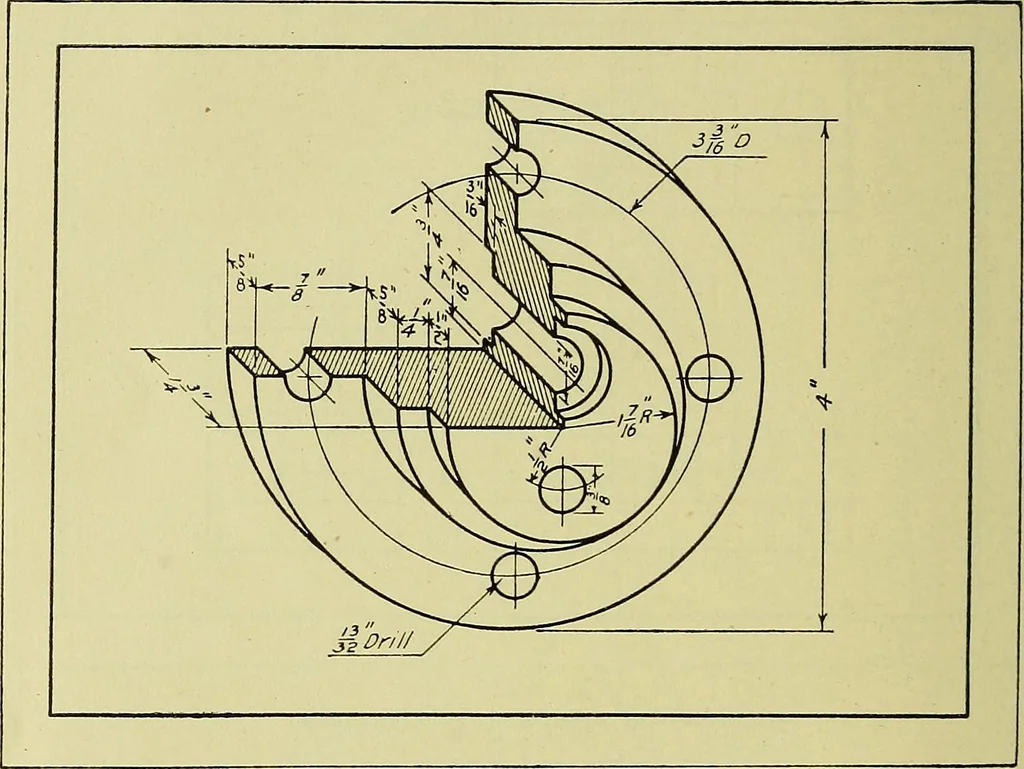

l to the horizontaland vertical axes, and one-half actual lengths for the measure-ments parallel to the 45° axis. 316 MECHANICAL DRAWING 6. Draw the necessary lines through the points located, re-membering that the lines of the object, which are parallel to ageneral dimension of the object, should… … Pjg. 358. Type Problem. Sparker Body DATA FOR DRAWING PLATE 55 Given: The orthographic views of a crosshead brass. Fig.354. Required: To make a cabinet drawing of the object asshown in Fig. 354, or any similar problem assigned by theinstructor. Instructions: 1. Proceed in drawing the straight lines…
Mechanical drawing
