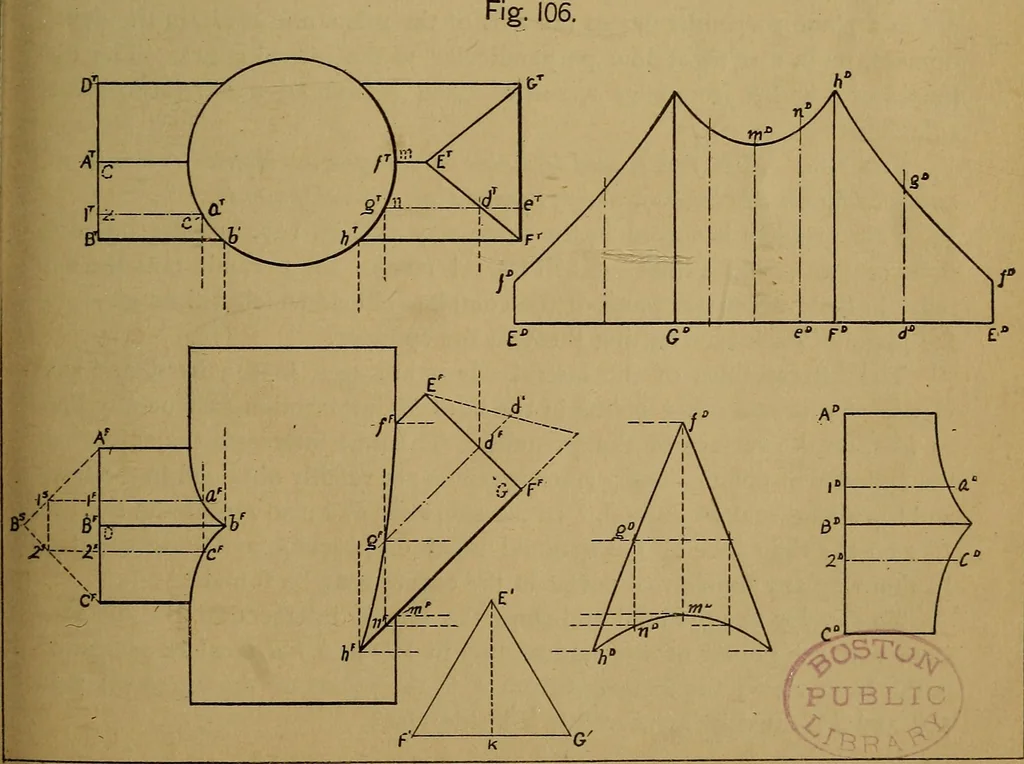

148 MECHANICAL DRAWING. PLATE XVI. Fig. 107. Front., top., and right side views of a horizontal squarepris?n intersected by a vertical square pyramidj also develop?nents. The intersections of lines A V and CV with tlie edges of the prism areseen in the front view, and the intersections of lines B V…
