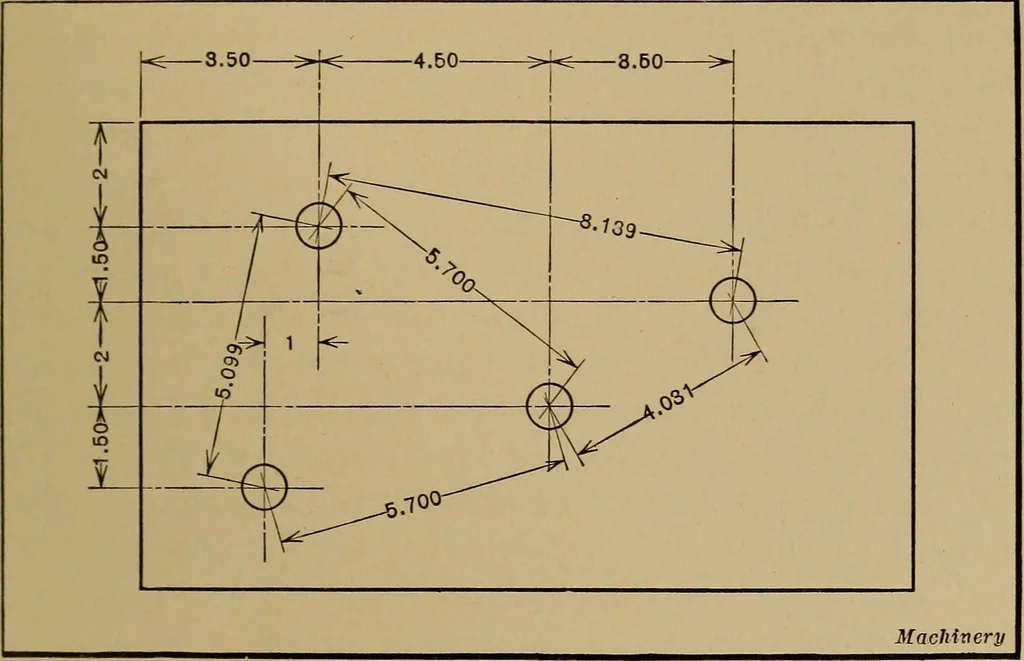

ct measurements,which is usually the case with precision work. If the workhad two finished edges at right angles to each other and thebase-line method of dimensioning (illustrated at D, Fig. 6)were practicable, the buttons could then be set easily by plac-ing the work on a surface plate with first… … Fig. 7. Drawing on which Center-to-center Distances between Holes are given toavoid Calculations in Tool-room by referring directly to the dimensions. But after settingthe buttons by this method, the toolmaker would have to cal-culate the center-to-center distance between the holes, if itwere…
