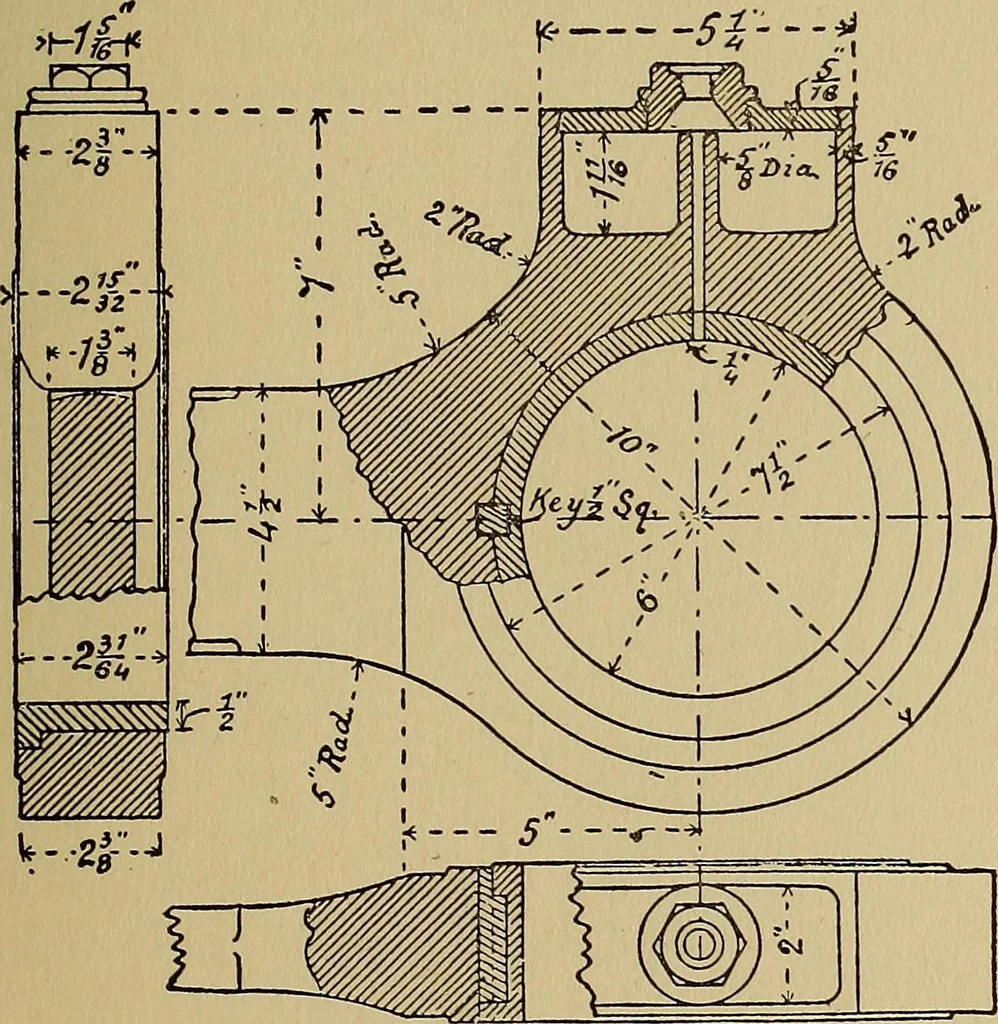

The brass bush is prevented fromrotating by means of the square key shown. Theoil-box is cut out of the solid, and has a wrought-iron cover slightly dovetailed at the edges. Thiscover fits into a check round the top inner edge ofthe box, which is originally parallel, but is made MACHINE DRAWING 87… … 1^ gii ,1 Fig. 168—Locomotive Coupling-rod End. the center, through which oil may be introducedto the box. Dust is kept out of the oil-box byscrewing into the hole in the brass plug a common cork. The oil is carried slowly but regularlyfrom the oil-box over to the bearing by a pieceof cotton wick.
