Practical mechanical drawing and machine design self taught .. (1907)
Westinghouse, Charles. [from old catalog] · Chicago, F. J. Drake & co. · leaf 97

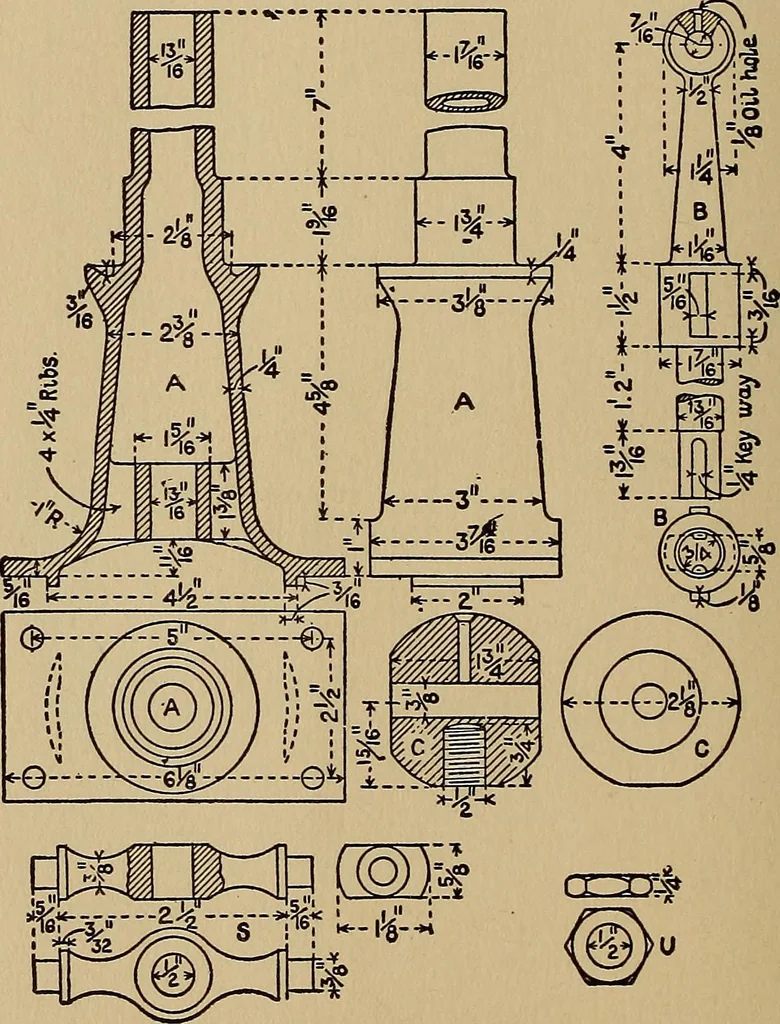

fine vertical adjustment is obtained by rotatingthe milled nut B. After all adjustments have beenmade, K is locked in position by the set-screw C.Example 18. Jack Screw. From the half eleva- 13 H- zYz- Tig. 181—Details … of Governor Tig. 182—Details of Governor. MACHINE DRAWING 95 tion and half section shown in Fig. 177 makeworking drawings of the separate parts of thescrew-jack, then draw the views shown below ofthe complete machine. Scale 6 inches to 1 foot. -.V-*.
Mechanical drawing · Machine design
