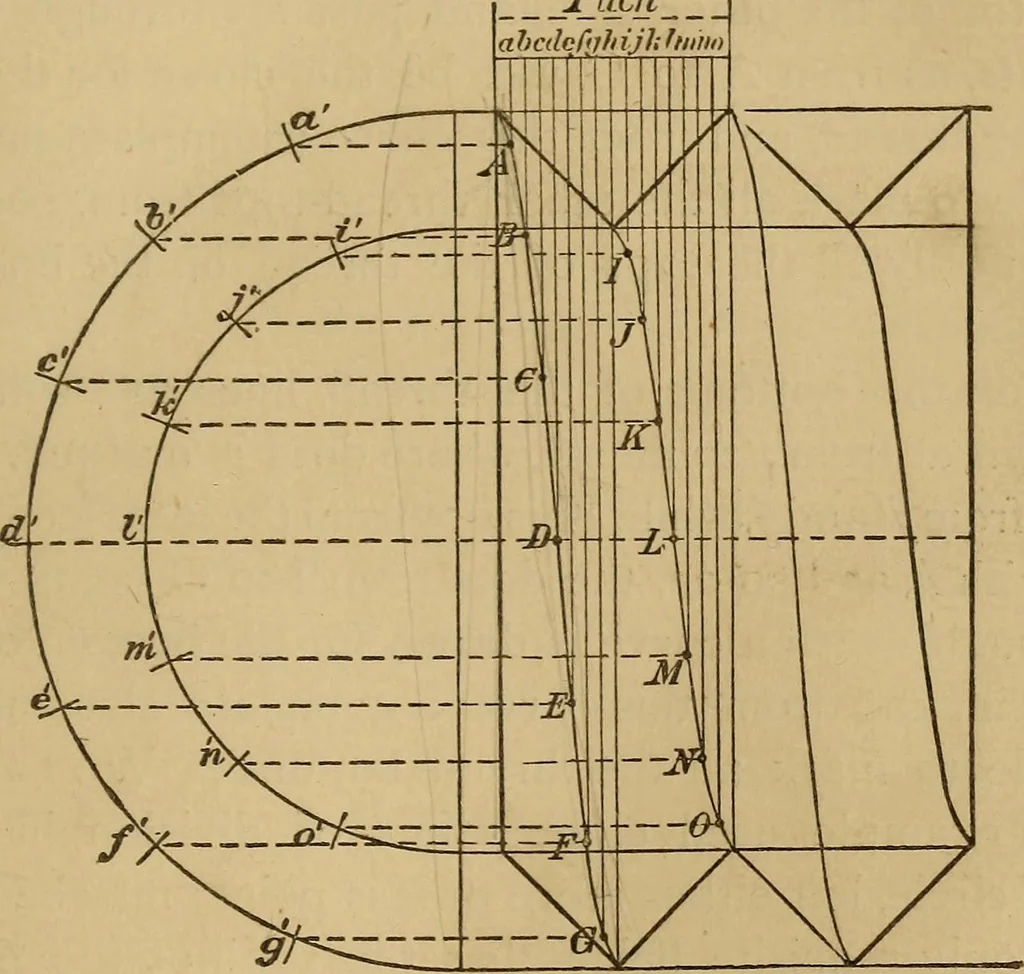

ent the topsand bottoms of the thread, a template to draw thecurves by is required. To get these curves, two half-circles, one equal in diameter to the top, and one SCREW THREADS AND SPIRALS. 157 equal to the bottom of the thread, are drawn, as inFiofure 208. These half-circles are divided Into any… … Fig. 208. then divided off by vertical lines into as many equaldivisions as the half-circles are divided into, as bythe lines a, b, c, etc., to 0. Of these, the seven from a,to h, correspond to the seven from o! to g\ and arefor the top of the thread, and the seven from i to 0correspond to the…
