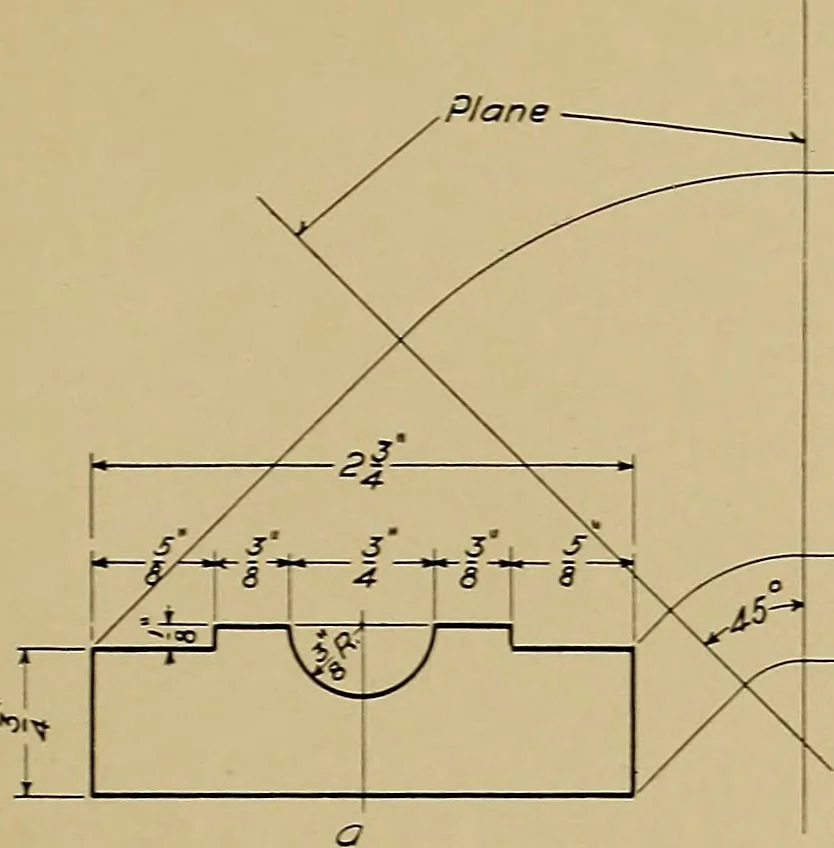

s shown by the dotted line. The student is expected to lay out the three views of this piece, thetop and edge views to be placed in the positions indicated on the draw-ing. Remember that this lesson is intended purely as a study in pro-jection, and do this work very carefully. If the student fully… … Fig. I ■ Pfon^ Project end vieiv her^c
Mechanical drawing
