Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 84

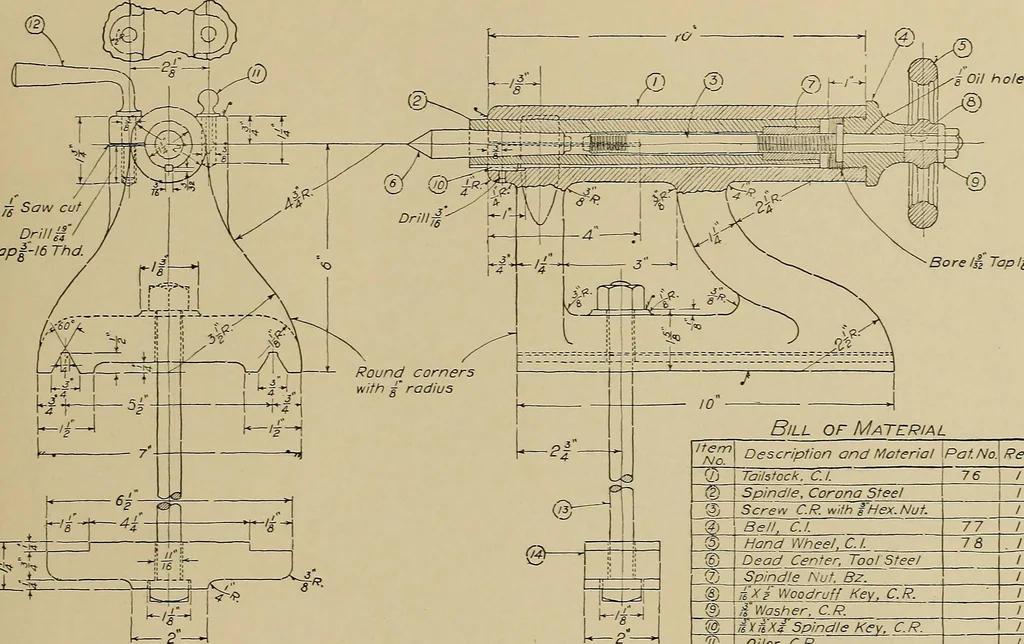

ut on the side of the tailstock barrel is for the purpose of allowing this part to clamp tightly around the spindle when the bind-ing screw is tightened down. The oil hole shown in the bell should be drilled after it is in placein the barrel, as it should of necessity be on the upper side of the… … Bill of Material .T> Note: For details see Dwgs. C.I0Z7 & C.I028 ItemNo. Description and Material \Pat.No\Req. £ Tailstock, C.I. 76 1 ~W Spindle, Corona Steel 1 rs Screw C.R. with fHex. Nut. 1 ® Bell, CI. 77 1 ■-©. Hand Wheel, C. 1. 78 . / © Dead Center, Tool Steel / ® Spindle l\ut. Bz. / ®…Mechanical drawing
