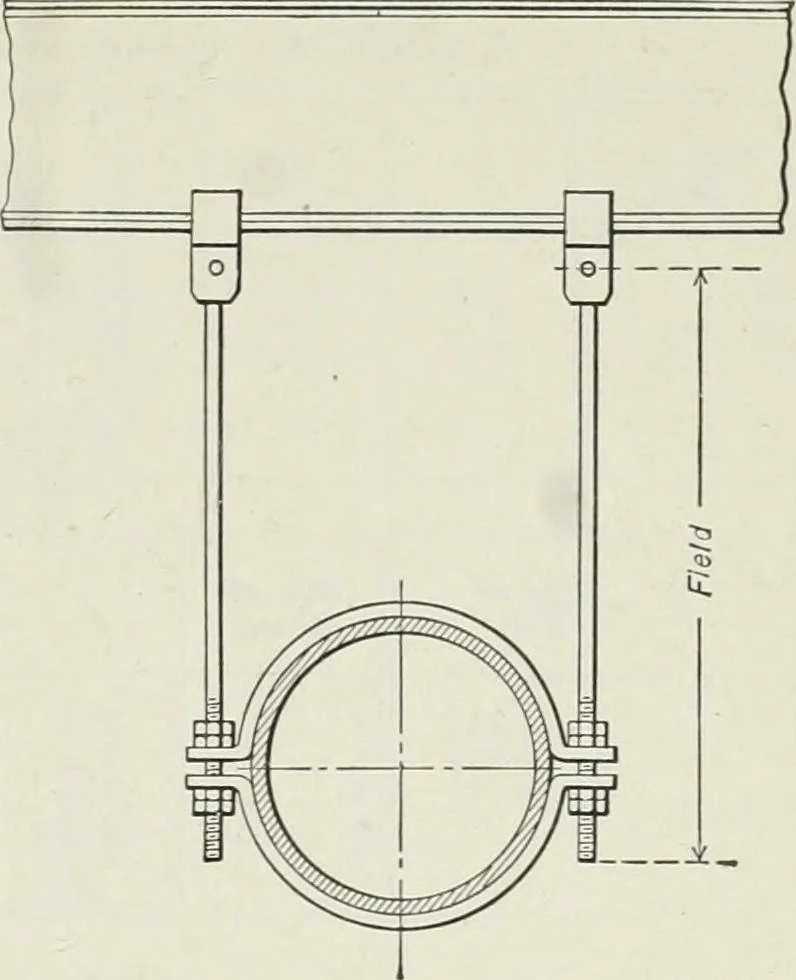

FiG. 45. Detail of EyeBolt End. … Size ofRod (D) B H n M /* 3M 1 1 All Dimensions in Inches Fig. 46. Horizontal Ttpe. The size of the rod is determined bythe size of the pipe. See Tables 30and 31. The size of the beam clamp is de-termined by the size of the beam andthe size of the rod. See Table 29. For the vertical type make the…
