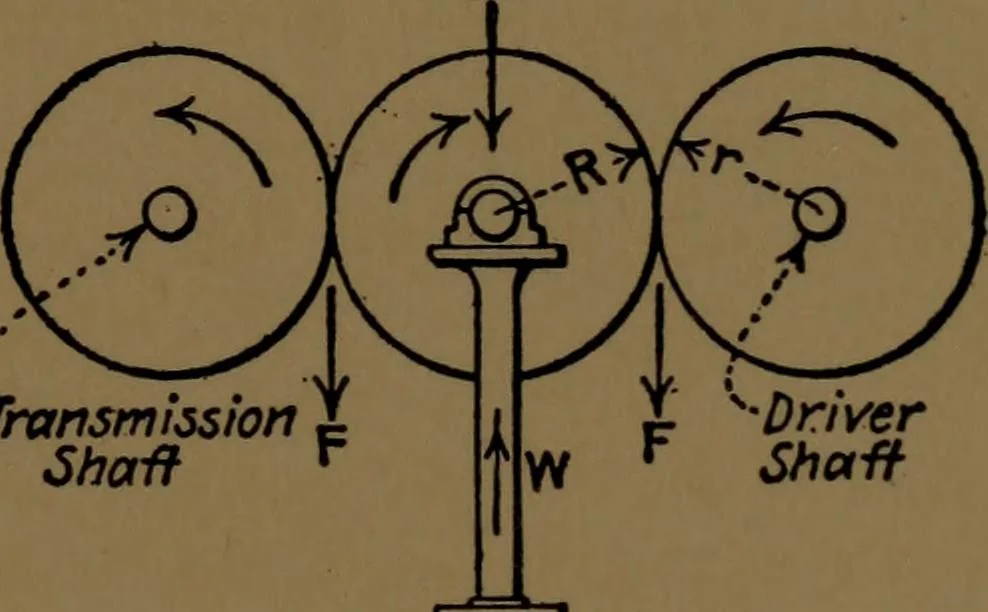

^•Transmission cShaft * 1 Scales Fig. 24.—Belt Dynamometer. Fig. 25.—Pillow Block Dynamometer. Thus by balancing the belt torque by a known weight W, thepower may be measured if R/a is known and if a suitable allow-ance is made for friction. A pillow block dynamometer is shown by Fig. 25,…
