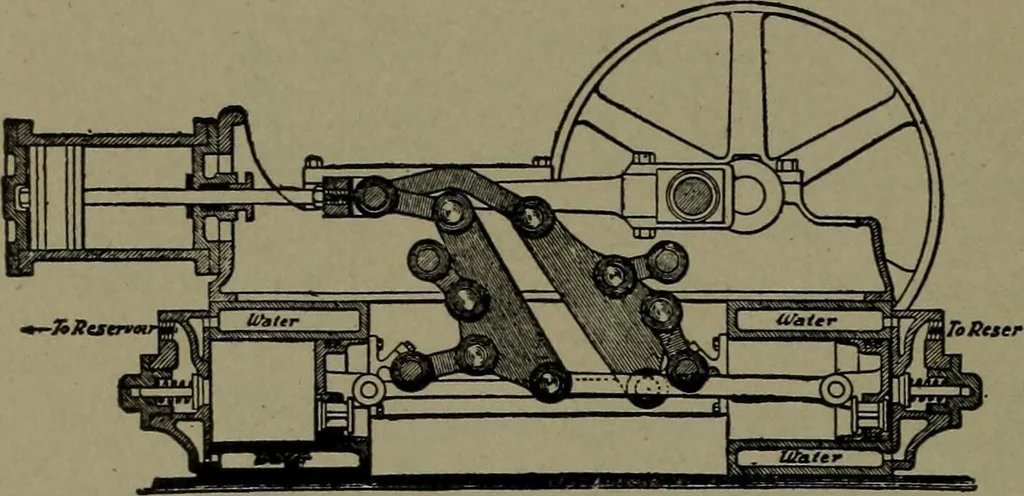

piston, and is forced through the valve D and pipe to the high-pressureinlet valve G; it is further compressed and delivered through the valveA, and passage L. Both pistons are single, acting in opposite directions. 174. AIR POWER APPLIANCES. … 647. DUPLEXAIR COMPRES-SOR, with parallelmotion beams totwo single-acting aiicylinders from adouble-acting steamcylinder. N. Y.Air Brake model. (pX (o\ 648. TOGGLE-JOINT DUPLEX AIRCOMPRESSOR.—The crank moves thecommon joint of the long arms in a hori-zontal direction on a slide. The straightv^n-ing…
