Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 248

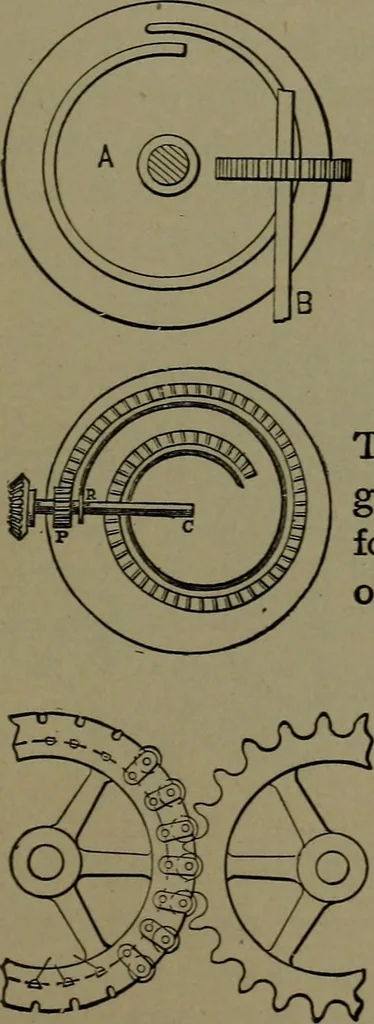

is ob-tained by a geared scroll plate with a sliding pinion onA a constant speed shaft. … 929. SPIRAL HOOP GEAR for specialand slow transmission of power and motion toa shaft at right angle. One revolution ofwheel A moves shaft B one tooth of its gear. 930. ACCELERATED CIRCULAR MO-TION by a volute gear. The pinion P andguide disc R move along the feathered shaft C,following the rail…
Mechanical movements
