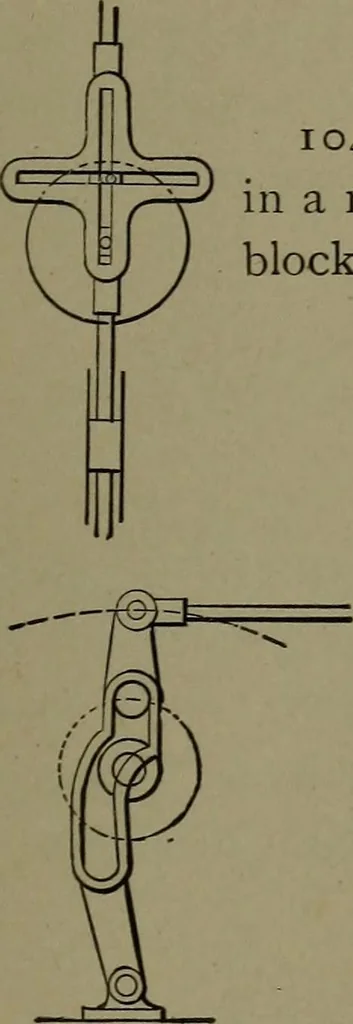

1039. SLOTTED YOKE CRANK MOTION, producing rectilinear motion of piston rod from acrank dispensing with a connecting rod. … 1040. TRAMMEL GEAR.—The slotted cross movesin a right line astride the shaft, while the crank pin in ablock moves in the cross slot. 1041. SLOTTED LEVER MOTION from a crankpin. A variety of motions and stop motions may bemade with this class of lever. a^
