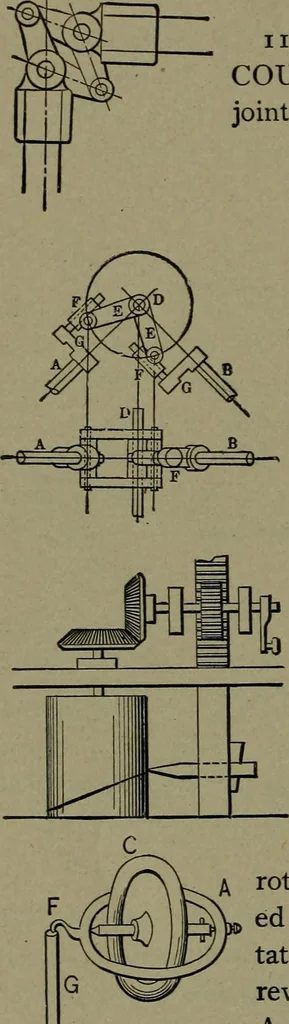

1134. UNIVERSAL ANGLE COUPLING, Hookes principle. Each shell carries a doubletrunnion ring, the connecting link being pivotedat each end to the rings. 1135. ALMOND ANGULAR SHAFTCOUPLING.—The yoke links G, G arepivoted to the sockets on the ends of theshaft, and to the right-angled arms on thesleeve… … 1136. HOOKES ANGULAR SHAFTCOUPLING, the knuckle universal joint. Shaftjoints are double-pivoted at right angles. 1137. ANGULAR SHAFT COUPLING. —-In this arrangement the shafts have cranksand elongated crank pins, on which sleevesslide that are pivoted to the arms E, E of thesliding sleeve on the…
