Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 101

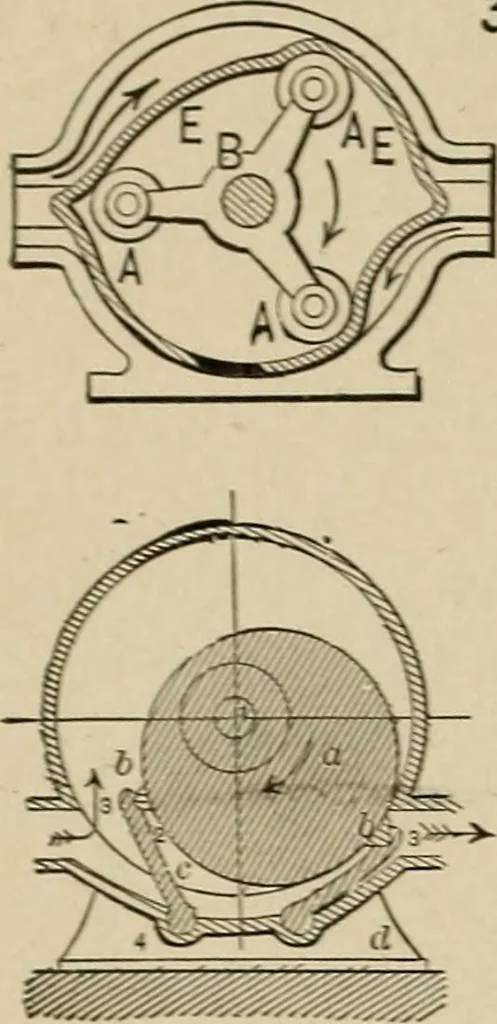

331. NAPIER ROTARY ENGINE.—An eccentric mounted cylinder on a shaft concentricwith the shell. There are two sliding wings in slotsin the shell, held to their bearings by springs or camwheels on the shaft outside with connecting bars.There are two pair of ports. 92 STEAM POWER. … 332. ROLLER PISTON ROTARY ENGINE. A rubber lining loosely placed within the cylin-der is rolled over by the three-armed roller spider.E, E, rubber lining; B, spider on shaft; A, A, A,rollers. SS3 COCHRANE ROTARY ENGINE.—An eccentric cylindrical piston rotating on anaxis central to the shell. The…
