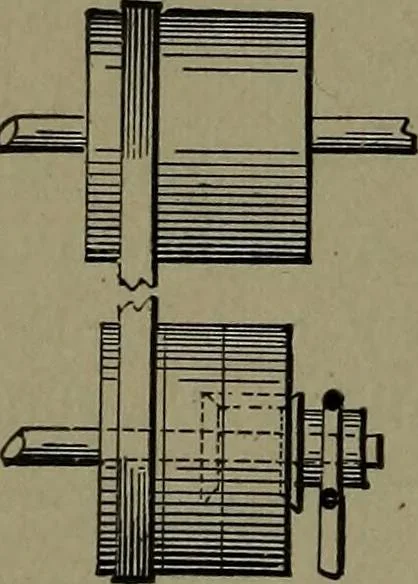

96. TWO SPEED PULLEYS AND BELTS. —Two pair of tight and loose pulleys on lowershaft, unequal broad tight pulleys on upper shaft.By crossing the belt from one of the pair a quickreturn speed may be obtained. Much used j3ntapping-machines and planers. … 97. PULLEYS, COMBINED WITH A DIF-FERENTIAL GEAR for two speeds, and stop-beltshown on loose pulley. Middle pulley on lowershaft is fast to shaft, and has a bevel gear fast to itshub. Pulley on the right is loose on shaft and car-ries, transversely, another bevel gear. A third bevelgear runs loose…
