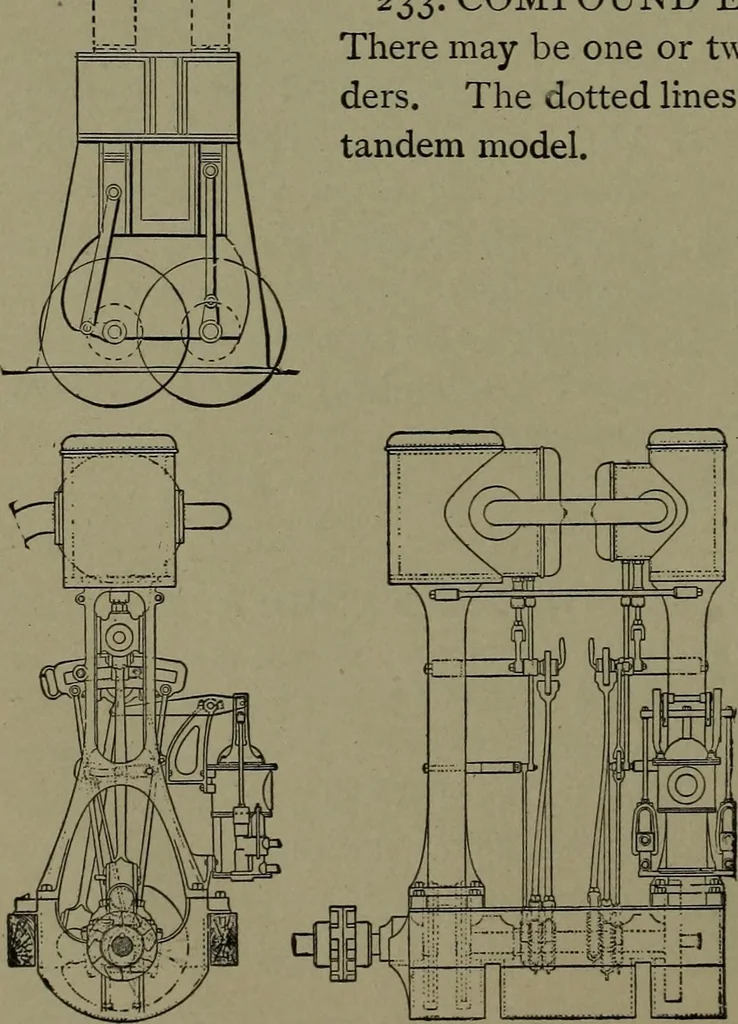

?^:^ f^ 232. TANDEM COMPOUND VERTICALENGINE, with cross-head and two piston rodsfor low-pressure piston 233. COMPOUND ENGINES fort^vin screws. There may be one or two pair of compound cyhn-ders. The dotted lines represent cylinders of thetandem model. … 234. COMPOUND YACHT ENGINE, Her- reshoff model. Direct ^f^f receiver pipe. End and longitudinal elevation. I i I^ I STEAM POWER. 71
