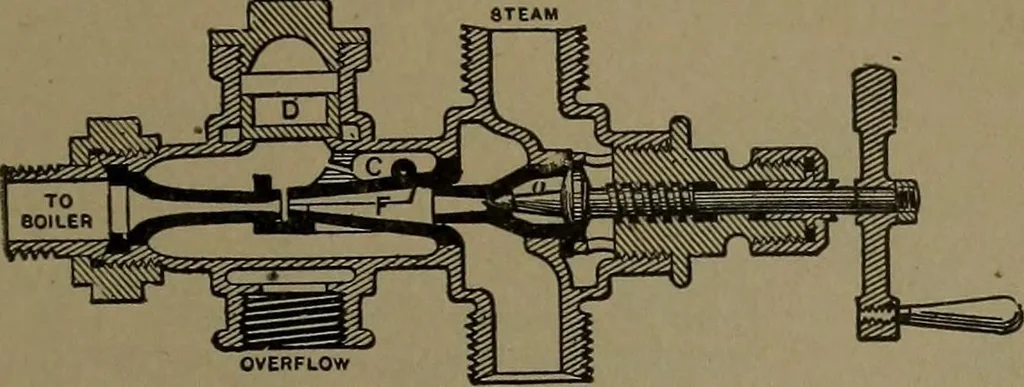

ve for both cylinderswith direct steam passagesthrough the valve chamber.High pressure steam entersat the central port A. Steaminlet and exhaust indicated bythe arrows. Section V^. STEAM APPLIANCES. Injectors, Steam Pumps, Condensers, Separators, Traps, and Valves. 372. PEERLESS IN-JECTOR.—An…
