Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 305

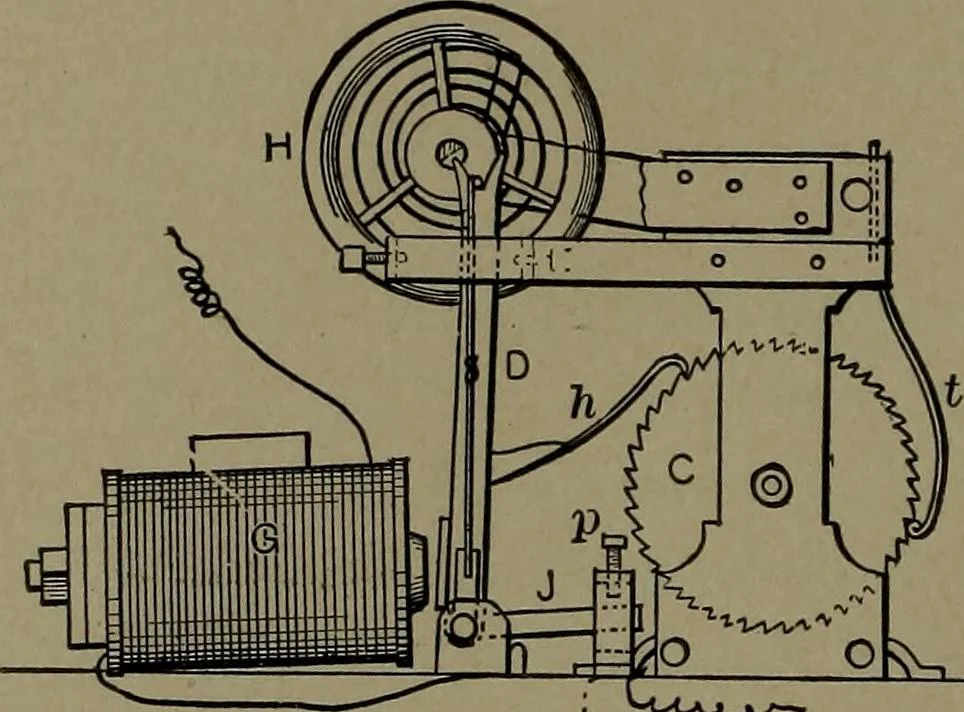

294 HOROLOGICAL. … j -W*M_>-— 1194&. ELECTRIC BAL-ANCE WHEEL CLOCK.—G represents the magnet, Hthe balance wheel, D armature,m a pin on the balance wheel,C ratchet wheel, h and t arepawls, P adjusting screw.When the circuit is closed themagnet draws the armature Dforward, whereby the ratchetwheel C is turned…
Mechanical movements
