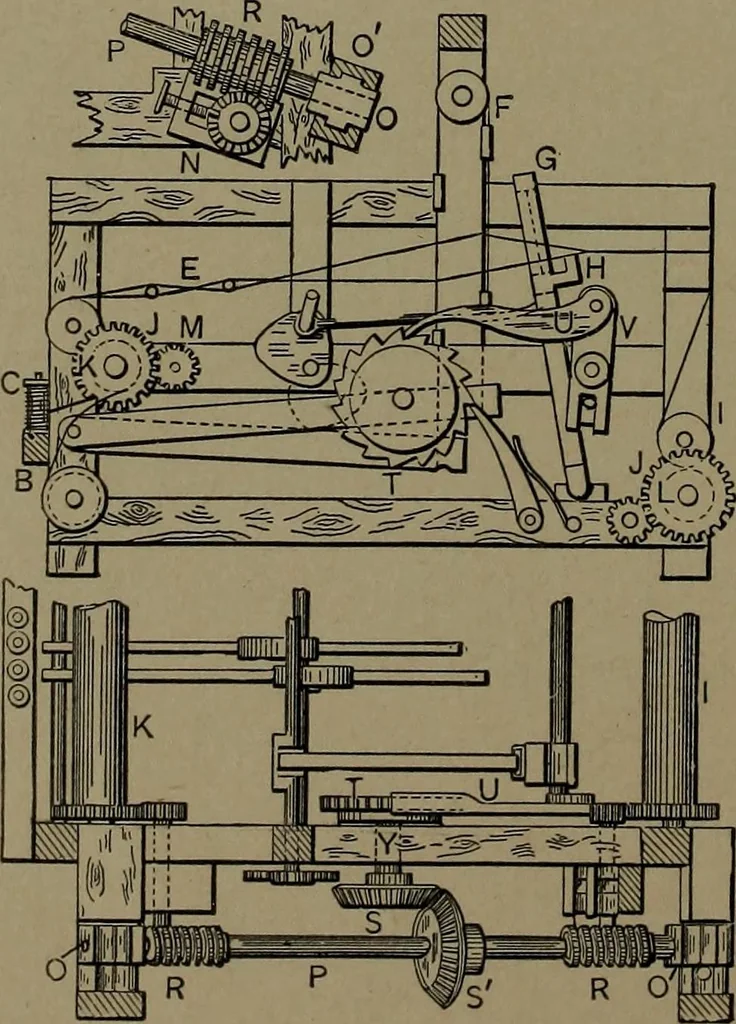

1443/?. TAKE-UP AND LET-OFF MOTION FOR LOOMS. —The detailed parts are:Take-up roller I, let-ofT rol-ler K, a pawl U pivoted tothe vibrating lever V operatedby the shuttleboard frameG, H, and moving the ratchetT, bevel gear S, S, shaft P,worm gear R, R, and gearconnection to move the rollersI, K. E,… … Section XVI. CONSTRUCTION AND DEVICES. Mixing, Testing, Stump and Pile Pulling, Tackle Hooks, Pile Driving,Dumping Cars, Stone Grips, Derricks, Conveyer, Timber Splic-ing, Roof and Bridge Trusses, Suspension Bridges. 1444, POST AUGER.—Often mads with asingle turn to the blade. Used also for…
Mechanical movements
