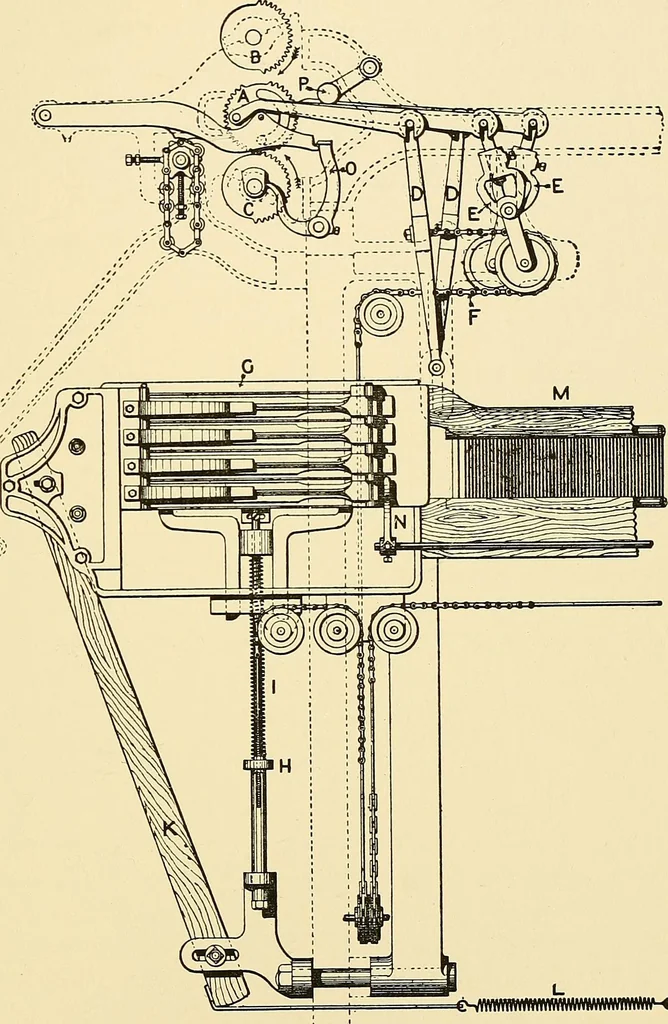

opping of the lever holding it. The instrument by which thismovement is effected operates under the lever in the shape of a rod-and-bowl chain upon a barrel in the centre of a pinion wheel drivenfrom the crank shaft. Suppose, for example, a plain link of the chainis passing under the lever. The… … 4Himmitmimimmim • Fig. 331.—Rod-and-bowl or Knowles Chain Shuttle-box Motion A Vibrator, b, Upper cylinder, c, Lower cylinder, d d, Simple levers, e e, Compound levers, f. Chainto lift boxes. G, Shuttle-box frame. H, Lifter plate. I, Spring and shaft on which boxes are raised. K, Pickingarm. L,…
