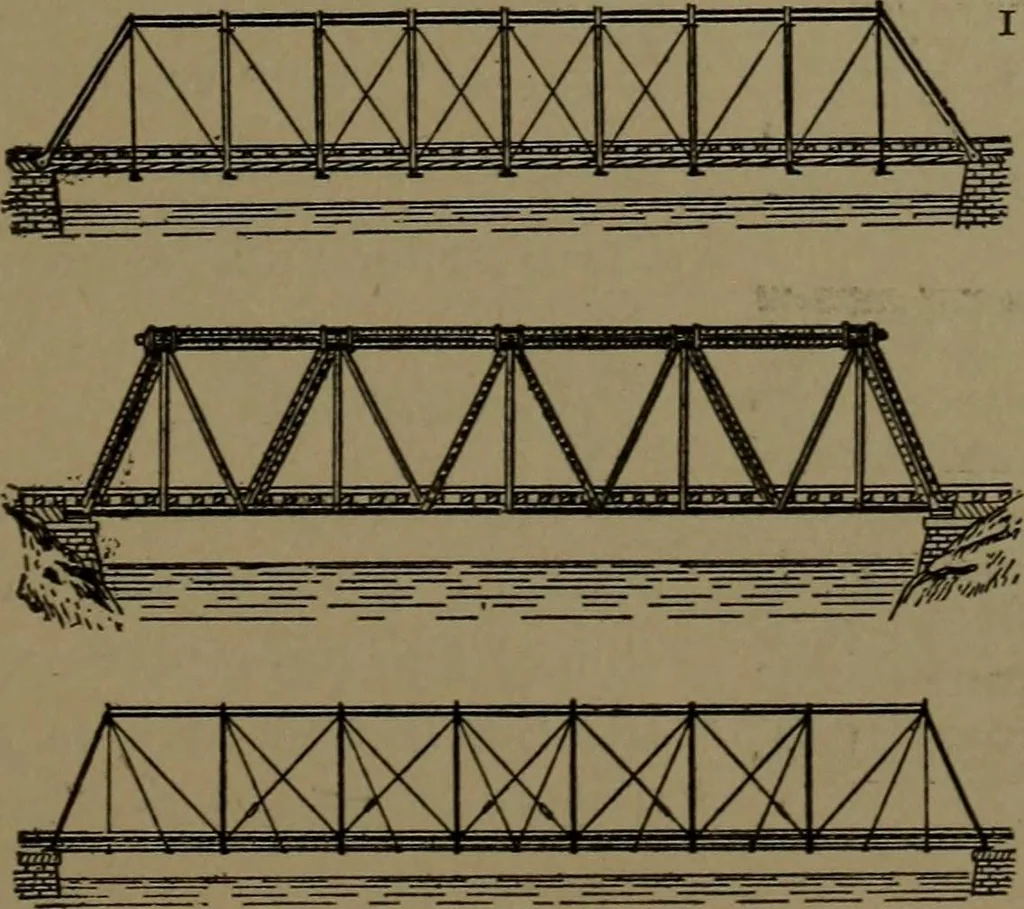

g| Struts and tie rods give stability tothe structure. … 492. BRIDGE TRUSSES.—TheWhipple truss. Ver-tical and end posts arestruts; vertical tie rods fromend posts ; diagonal tie rodsin panels. 1493. Inclined posts andvertical tie rods. Baltimoremodel. 1494. Whipple truss,with interpanel tie rods. 358 CONSTRUCTION AND DEVICES. 1495. ARCH TRUSS BRIDGE.—The…
