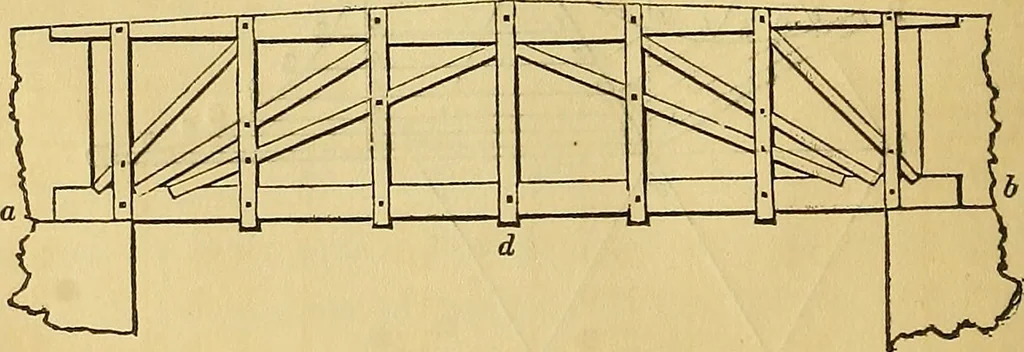

hod of constructing wooden bridges, wherethe banks of the river are high enough to permit the use of thetie-beam, a h. The upright pieces, c d, are notched and boltedon in pairs, for the support of the tie-beam. A bridge of thisconstruction exerts no lateral pressure upon the abutments. Thismethod… … Fig. 226. 314.—Fig. 227 exhibits a wooden bridge without a tie-beani*Where staunch buttresses can be obtained, this method may berecommended; but if there is any doubt of their stability, it FRAMING. 177
