Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 90

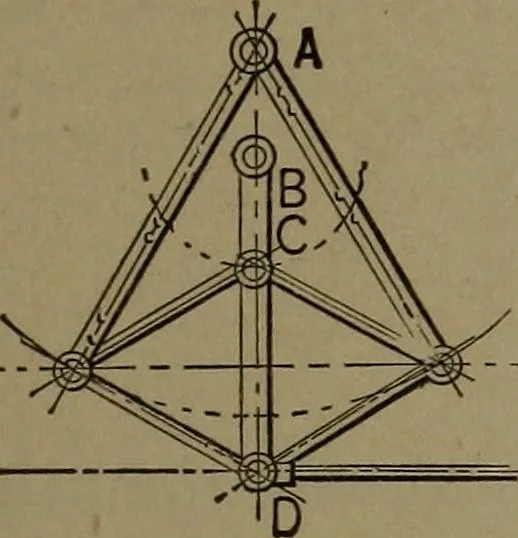

:3 272. VALVE MOTION ECCENTRIC —The rocker connecting link increases themotion of the valve rod and travel of thevalve. STEAM POWER. 79 … 273. « PEAUCELLIERS PARALLELMOTION.—A, B and B, C are of equal distances,when the connecting rod will move in a straightline. When B is connected with the outer jointof the link quadrangle the inner joint C willhave a straight-line motion.
Mechanical movements
