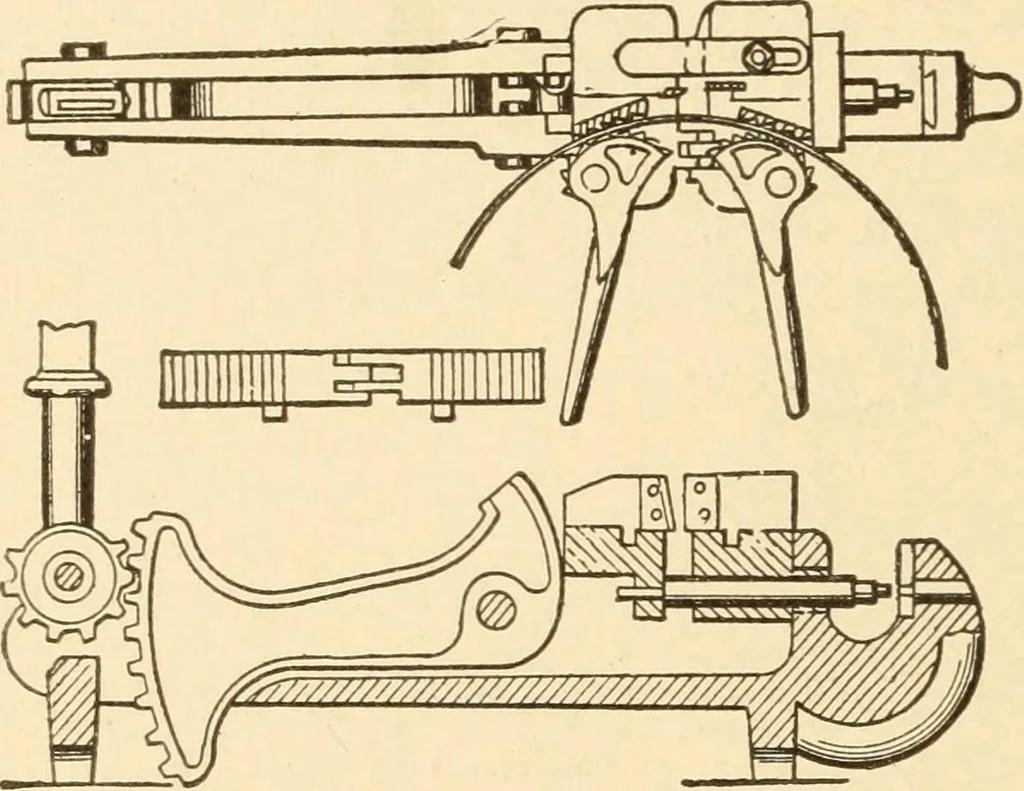

1368. TIRE SHRINKER.—A linkchain around the tire terminates in a fixedhook, and the hook on a powerful lever. 33= MILL AND FACTORY APPLIANCES, 1369. COMBINED TIRE UPSETTING AND PUNCHINGMACHINE.—The tire is made fast by the cam jaws, and the mov-able cam is set forwardby the sector cam leverand… … PLATE SAWING MACHINE.—A slow-running steel saw blade lubri-cated by dippingin an oil box. Thesaw is automatical-ly fed to the plateby a worm gear,but has a quickreturn by the handwheel.
