Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 409

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 409

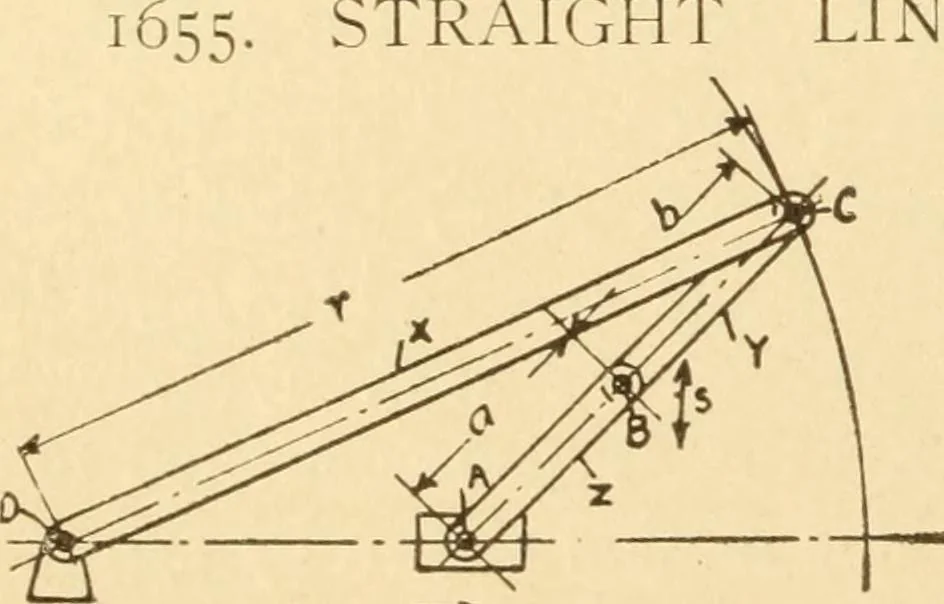

STRAIGHT LINE MOTION WITH ONELEVER AND TWO LINKS.—Lever X is connected to a slid-ing link Z by a link F. X ispivoted at D and connected tolever F at C. F is connected.to X at C and Z at J5. Z is con-nected to F at B and to a slid-ing guide at A, The point B moves in a straight line. … STRAIGHT LINE MOVEMENTS. 399 1656. STRAIGHT LINE MOTION WITH THREELEVERS AND TWO LINKS.—Levers F, H, and / are con-nected by links G and /. Lever F is pivoted at K and connectedto link G at L. Lever / is pivoted at Q and connected to link / at P. LeverH is pivotedat A and con-nected on oneend to…
