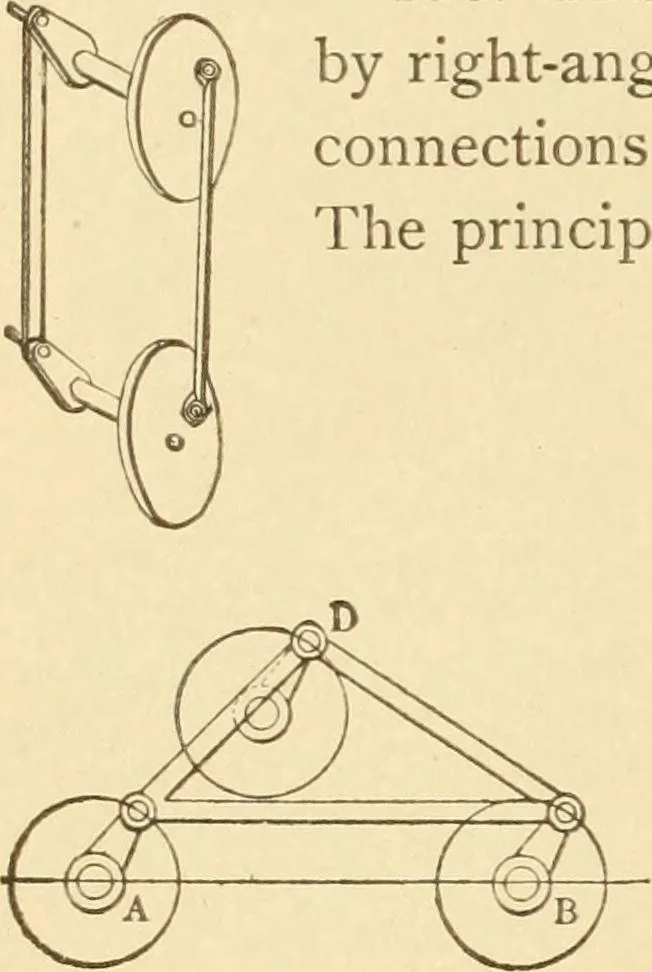

40 TRANSMISSION OF PO^VER. ii6. TRANSMISSION OF CIRCULAR MOTIONby right-angled cranks on each shaft. The pair of crankconnections carry the right-angled cranks over the centre.The principle of the locomotive wheel connections. 117. THREE CRANK LINK connection for transmission of motion to a crankby…
