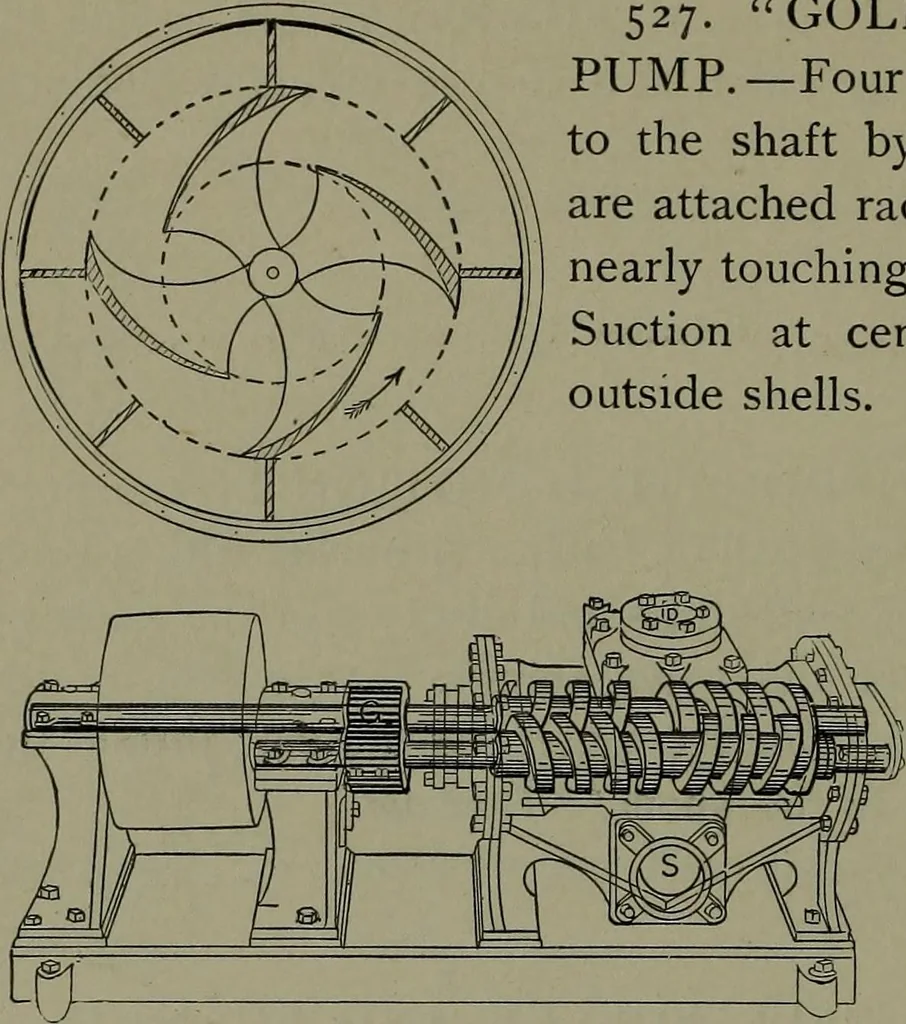

526. PARALLEL MOTION for doublepiston pump. A, The lever handle; linksequal lengths. 144 HYDRAULIC POWER AND DEVICES. … 527. GOLDING CENTRIFUGALPUMP.—Four volute blades are attachedto the shaft by arms. To the outer caseare attached radial blades with their edgesnearly touching the revolving volute blades.Suction at centre; discharge at sides ofoutside shells. 528. QUIMBY SCREWPUMP.—The screws re-volve, meshed in…
