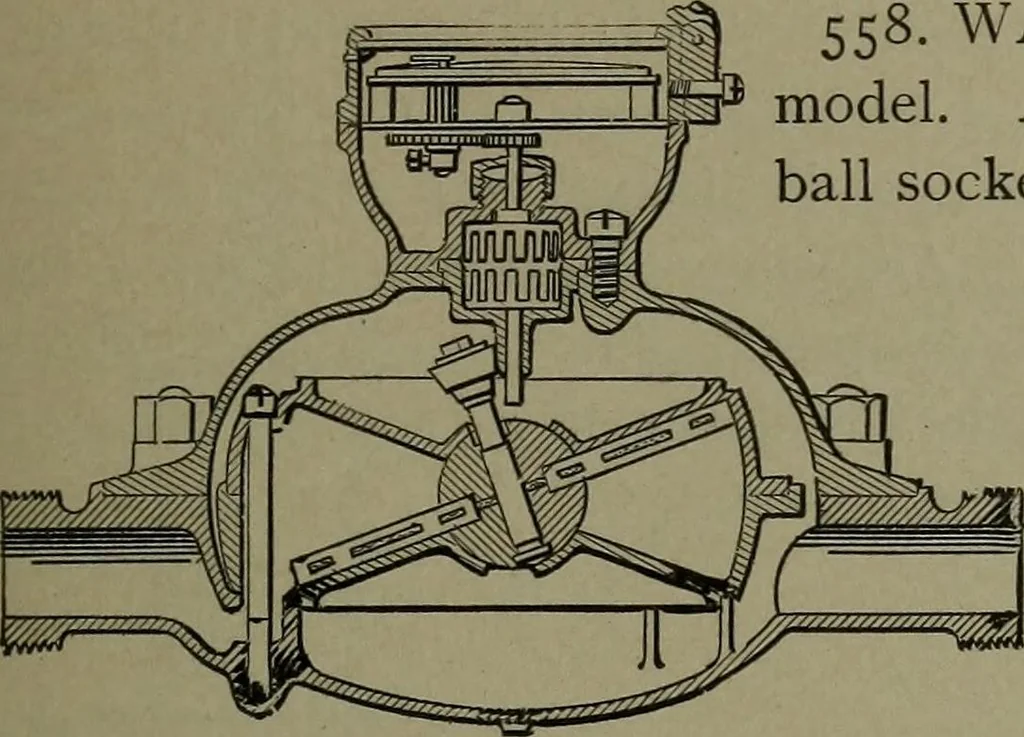

557. DISC WATER METER, Herseymodel. The disc piston, A, oscillates by the-passage of water through the disc chamber.The spindle of the disc, by its oscillatingmovement, rotates the crank and gears of theindex-wheel train. HYDRAULIC POWER AND DEVICES. i;i … 558. WATER METER, Thompson model. A swinging disc movement on ball socket, operated by a flow of water, rotates a vertical crank spindle and gear train with index hand above the dial.
