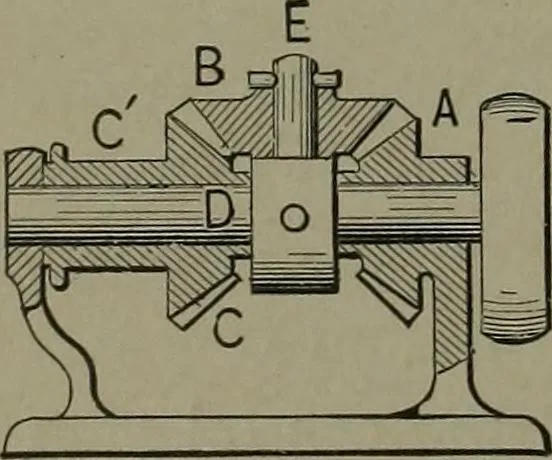

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 255 — ey velocities. If B is the driving shaft, A.and A! may be the wheels of a vehicle. 975. DOUBLING A REVOLUTION on thersame shaft, Entwistles patent. The pulley at:A is the driver on the shaft D. The bevel gearat A is fixed. The stud E is fast on the shaft^.The bevel wheel B revolves freely on the… … GEARING. 247
