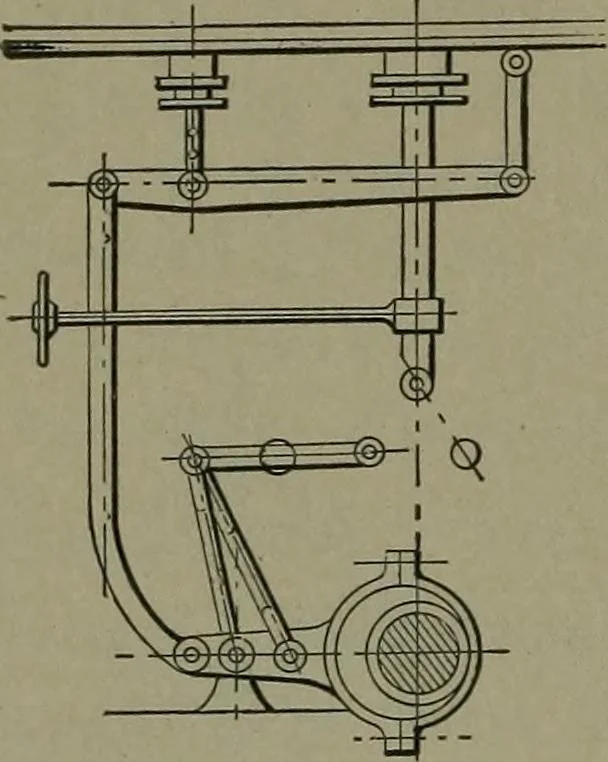

JOYS • VALVE GEAR for ahorizontal engine. Adjust-ment is made by the angular position of the slottedlink. Valve motion by crankrod and links. 76 STEAM POWER. … 259. BREMME VALVE GEAR with single eccentric. The eccentric arm is rockedby the double link connection and is reversedby throwing the link joint over by the handscrew and sector arm, not shown in cut.
