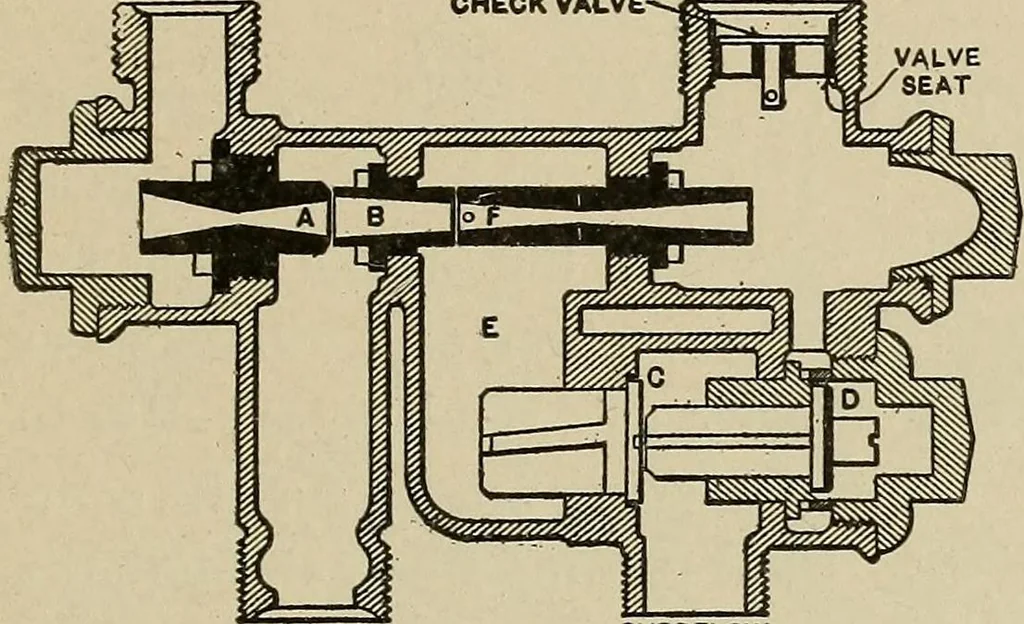

379. LITTLE GIANTINJECTOR.—This modelhas two fixed tubes. Thecentral or combining tube ismovable for adjustment. Asingle automatic check valveregulates the overflow. CHECK VAI.V£-> VALVE seat … Vl^ATER 380. PENBERTHYSPECIAL INJECTOR.—Has three fixed nozzle tubes.The opening of a detachedvalve gives steam pressure inthe chamber E, and opensboth overflow check valves.When the current is estab-lished check valve C closes,followed by check valve D.
