Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 331

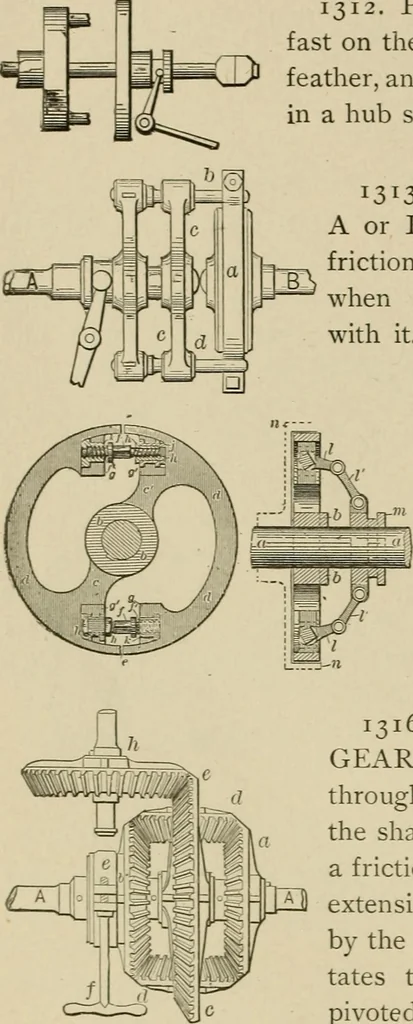

1310. FRICTION CLUTCH, outside view, with toggle-jointthrust, sleeve, and yoke lever. 1311. Section of outsidebearing, clutch, toggle joint,and sleeve. 322 MILL AND FACTORY APPLIANCES. … 1312. PIN CLUTCH.—The pin plate isfast on the shaft. The hole plate slides on afeather, and is operated by a bell-crank Y-Jeverin a hub slot. 1313. FRICTION PIN CLUTCH.—A or B may be the driving shaft; ^ is afriction band that slips to prevent shockwhen the pins are thrown into contactwith it.…
Mechanical movements
