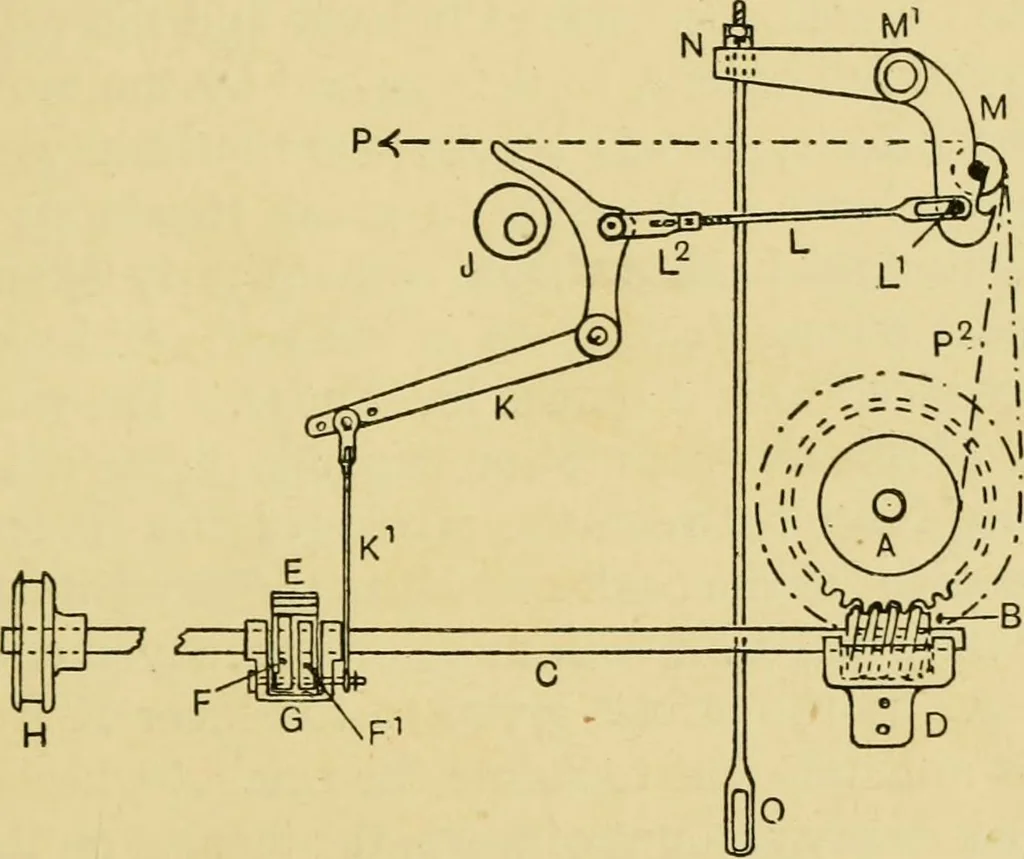

kewheel H. The catches are operated from the crankshaft FEATURES OF POSITIVE LET-OFF MOTIONS 169 by means of the eccentric J and the cranked lever K, thelower arm of this lever being connected to the catch-boxby means of the rod K^ The stroke of the catches, andconsequently the amount of warp let… … Fig. 48. rest bracket M. The length of the rod can be easilyaltered by slipping it off the stud L^ and screwing itfarther into or out of the screw-threaded bracket L^. (b) By the movement of the back-rest M, which has itsfulcrum on the stud M\ The upper arm of the back-restM is suitably connected…
