Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 49

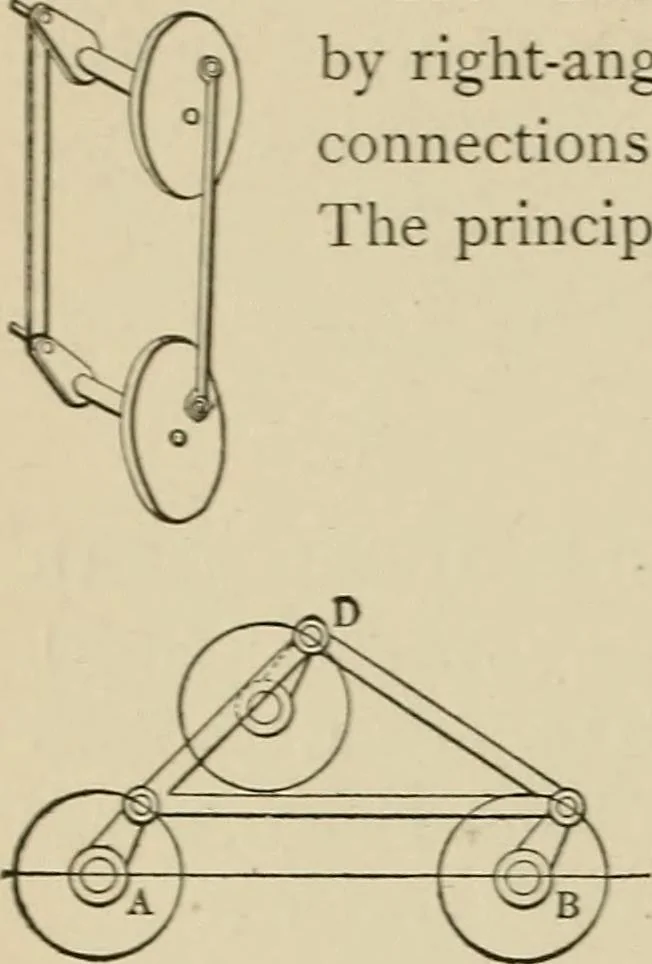

the right-angled cranks over the centre.The principle of the locomotive wheel connections. 117. THREE CRANK LINK connection for transmission of motion to a crankby direct link to avoid a dead centre. A,driven crank; B, driving crank; D, a reliefcrank with triangular link connections withcranks A…
Mechanical movements
