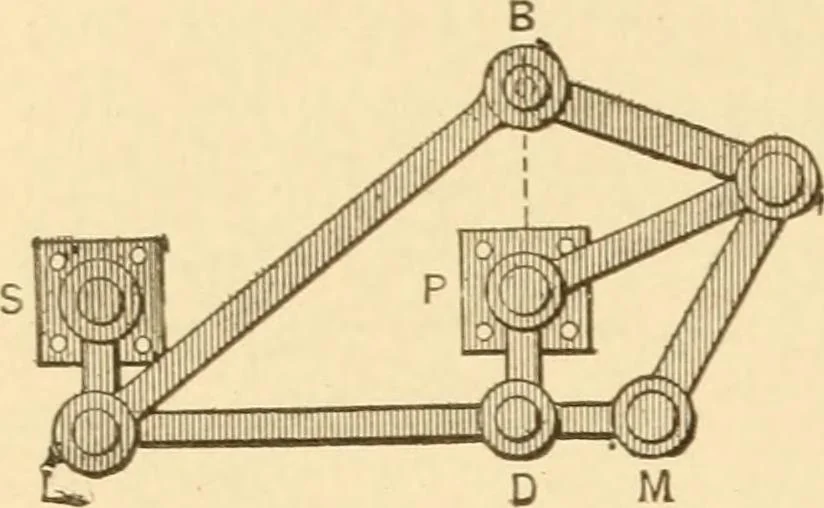

ough a single move-ment of the finger lever, three differentmovements are made, including the rais-ing of the index number. 48^. LE\^ER ACTION in a typewrit-ing machine. A main lever with fingerstud operates the type lever through abell crank and links. 48/z. LEADER ACTION in a typewrit-ing… … 48/. STRAIGHT LINE LINK-AGE.—\\ith the joints S and P^ fixed the joint B will have a ver-trical motion while the link L, ^iwill have a horizontal motion paral-lel with the fixed points S. P. LinksP, C. C, ~Sl, and B, C, are of equallength. L, B and L, M of equal lengths, as are the short links, S,…
