Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 60

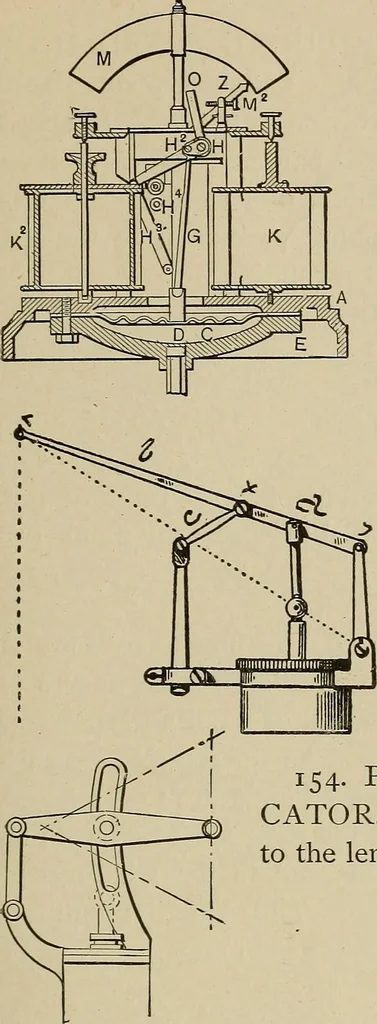

151. CORRUGATED TUBE-PRESSURE GAUGE.—The pressure within the tube expands it on the cor-rugated side and through the link connections withthe index hand moves the hand. MEASUREMENT OF POWER. 51 … 152. RECORDING PRESSUREGAUGE, Edson model. D, corrugated diaphragm bearing thepressure; G, connecting rod from dia-phragm to crank-pin, on the shaft on whichthe index hand is fixed, as also the armand pencil bar, H^, H^, in front of therecord sheet; K, K, winding barrels forthe record sheet driven…
Mechanical movements
